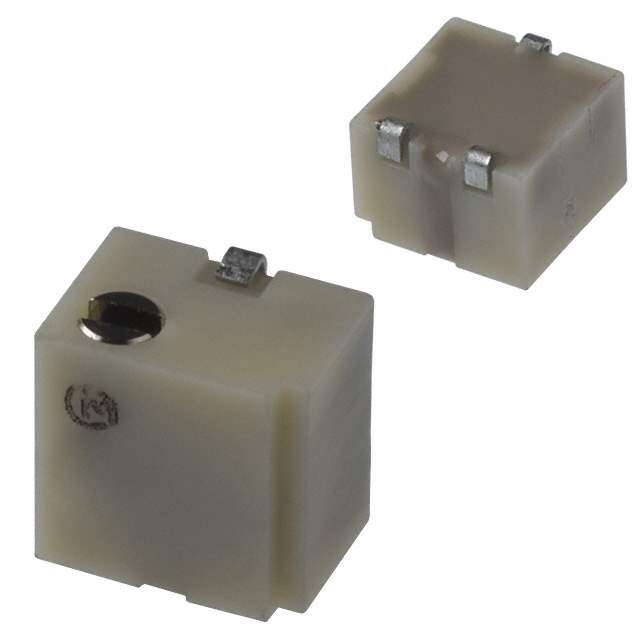

PVG5H203A01R00 Real Image
Same model may have multiple batches, images only for reference.

PVG5H203A01R00

Part No PVG5H203A01R00
Manufacturer Bourns Inc.
Catalog Trimmer Potentiometers
Description TRIMMER 20K OHM 0.25W SMD
Datasheet
PVG5H203A01R00 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Potentiometers, Variable Resistors
Manufacturer Bourns Inc.
Packaging Reel - TR
Status Obsolete(EOL)
Resistance (Ohms) 20k
Power (Watts) 0.25W, 1/4W
Tolerance ±10%
Temperature Coefficient ±100ppm/°C
Number of Turns 11
Adjustment Type Side Adjustment
Resistive Material Cermet
Mounting SMD (SMT)
Termination Style J Lead
Dimension Rectangular - 0.189" x 0.146" Face x 0.146" H (4.80mm x 3.70mm x 3.70mm)
Win Source Part Number 130984-PVG5H203A01R00
Popularity Medium
Supply and Demand Status Limited
Application Field Used in Industrial, Consumer Electronics, Portable Devices, Power Management
Ultra Librarian 3D Model Ultra Librarian PVG5H203A01R00 CAD Model

Description

The Bourns PVG5H203A01R00 is a rectangular potentiometer with a face dimension of 0.189" x 0.146" and a height of 0.146".

  • Termination Style: J-lead
  • Mounting: SMD (SMT)
  • Tolerance: ±10%
  • Temperature Coefficient: ±100ppm/°C
  • Power Rating: 0.25W, 1/4W
  • Resistance: 20k ohms
  • Turns: 11
  • Adjustment Type: Side adjustment
  • Resistive Material: Cermet
  • Manufacturer: Bourns Inc.
  • Win Source Part Number: 130984-PVG5H203A01R00
  • Supply and Demand: Limited
  • Product Status: Obsolete (EOL)
  • Application: Industrial, consumer electronics, portable devices, and power management
