Same model may have multiple batches, images only for reference.

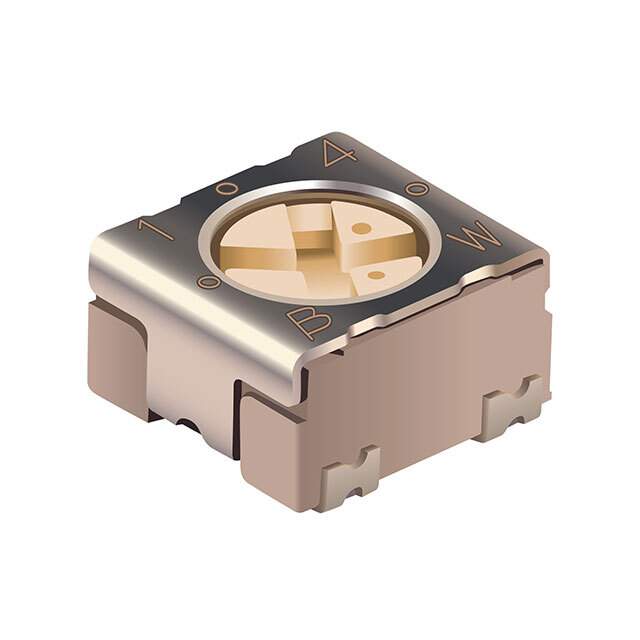

PVG3A200C01R00 Real Image
Same model may have multiple batches, images only for reference.

PVG3A200C01R00

Part No PVG3A200C01R00
Manufacturer Bourns Inc.
Catalog Trimmer Potentiometers
Description Res Cermet Trimmer 20 Ohm 20% 0.25W(1/4W) 1(Elec)/1(Mech)Turns 2.2mm (3.6 X 3.6 X 2mm) J-Hook SMD T/R / TRIMMER 20 OHM 0.25W SMD
Datasheet
PVG3A200C01R00 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Potentiometers, Variable Resistors
Manufacturer Bourns Inc.
Packaging Reel - TR
Status Active
Resistance (Ohms) 20
Power (Watts) 0.25W, 1/4W
Tolerance ±20%
Temperature Coefficient ±150ppm/°C
Number of Turns 1
Adjustment Type Top Adjustment
Resistive Material Cermet
Mounting SMD (SMT)
Termination Style J Lead
Dimension Rectangular - 0.142" x 0.134" Face x 0.079" H (3.60mm x 3.40mm x 2.00mm)
Win Source Part Number 1090767-PVG3A200C01R00
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Family Name PVG3
Introduction Date January 01, 2000
ECCN EAR99
Country of Origin Taiwan
Estimated EOL Date 2030
Ultra Librarian 3D Model Ultra Librarian PVG3A200C01R00 CAD Model

Description

The Bourns Inc. PVG3A200C01R00 is a top adjustment cermet potentiometer with a resistance of 20 Ohms and power rating of 0.25W.

  • Resistance: 20 Ohms
  • Power Rating: 0.25W
  • Tolerance: ±20%
  • Temperature Coefficient: ±150ppm/°C
  • Series: PVG3
  • Shape: Rectangular
  • Face Size: 0.142" x 0.134"
  • Height: 0.079"
  • Mounting: Surface Mount
  • Termination Style: J Lead
  • Packaging: Reel
  • Status: Active
  • Estimated EOL Date: 2030
