Same model may have multiple batches, images only for reference.

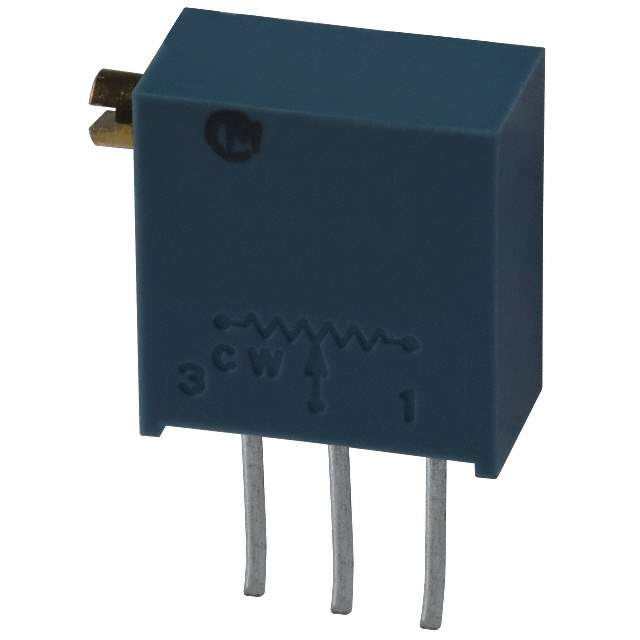

PV36X104C01B00 Real Image
Same model may have multiple batches, images only for reference.

PV36X104C01B00

Part No PV36X104C01B00
Manufacturer Bourns Inc.
Catalog Trimmer Potentiometers
Description TRIMMER 100KOHM 0.5W PC PIN SIDE / 100 kOhms 0.5W, 1/2W PC Pins Through Hole Trimmer Potentiometer Cermet 25.0 Turn Side Adjustment
Datasheet
PV36X104C01B00 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Potentiometers, Variable Resistors>Trimmer Potentiometers
Mfr Bourns Inc.
Series PV36
Package Bulk
Resistance 100 kOhms
Power (Watts) 0.5W, 1/2W
Tolerance ±10%
Temperature Coefficient ±100ppm/°C
Number of Turns 25
Adjustment Type Side Adjustment
Resistive Material Cermet
Mounting Type Through Hole
Termination Style PC Pins
Dimension Rectangular - 0.394" x 0.197" Face (10.00mm x 5.00mm)
Base Product Number PV36X
MSL Level Not Applicable
REACH Status REACH Affected
ECCN EAR99
HTSUS 8533.40.8050
Other Names 490-2895
Standard Package 100
Win Source Part Number 1152428-PV36X104C01B00
Ultra Librarian 3D Model Ultra Librarian PV36X104C01B00 CAD Model

Description

The PV36X104C01B00 is a trimmer potentiometer from Bourns Inc.

  • Dimension: 0.394" x 0.197" face (10.00mm x 5.00mm)
  • Resistive Material: Cermet
  • Tolerance: ±10%
  • Temperature Coefficient: ±100ppm/°C
  • Power Rating: 0.5W and 1/2W
  • Adjustment: Side Adjustment
  • Number of Turns: 25
  • Resistance: 100 kOhms
  • Mounting: Through-Hole
  • Termination Style: PC Pins
  • Standard Package: 100
