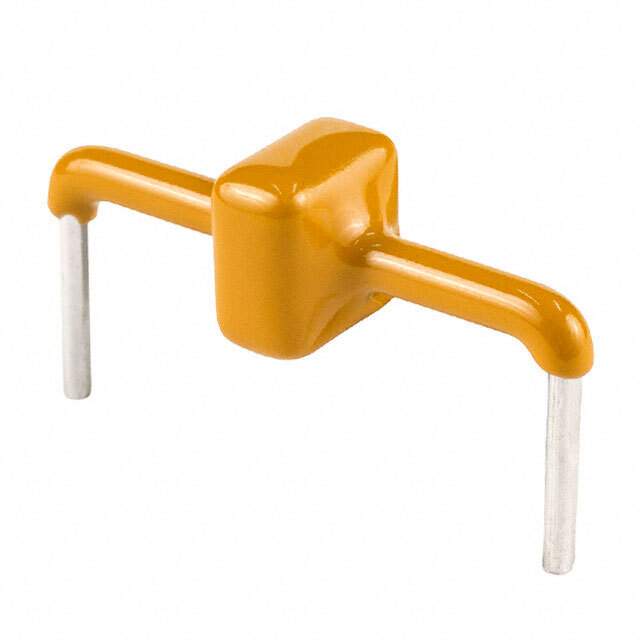

Same model may have multiple batches, images only for reference.

PTVS3-076C-TH

Name: PTVS3-076C-TH
Brand: Bourns Inc.
SKU: 931096
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	PTVS3-076C-TH
Manufacturer	Bourns Inc.
Catalog	TVS - Diodes
Description	TVS DIODE 76VWM 140VC AXIAL
Datasheet	PTVS3-076C-TH Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Circuit Protection
Estimated Pruduction Lead Time	15 Weeks
Features	140V Clamp 3000A (3kA) (8/20µs) Ipp Tvs Diode Through Hole Axial
Manufacturer	Bourns Inc.
Package	Tray
Operating Temperature Range	-40°C ~ 125°C (TJ)
Mounting	Through Hole
Package	Axial, Right Angle Bend (24.15mm Center)
Case / Package	Axial
Family Name	PTVS3
MSL Level	Not Applicable
REACH Status	REACH Affected
ECCN	EAR99
HTSUS	8541.10.0080
Other Part Number	118-PTVS3-076C-TH, PTVS3-076C-TH-ND
Quantity per package	50
Popularity	High
Supply and Demand Status	Balance
Win Source Part Number	931096-PTVS3-076C-TH
Ultra Librarian 3D Model	Ultra Librarian PTVS3-076C-TH CAD Model

Alternative Products

Description

The Bourns Inc. PTVS3-076C-TH is a high-quality TVS diode that is designed to provide protection against overvoltage and ESD.

Clamp Voltage: 140V
Peak Pulse Current: 3000A (3kA) (8/20µs) Ipp
Mounting Style: Through-hole axial
Operating Temperature Range: -40°C ~ 125°C
Packaging: Tray
Center: 24.15mm
Family: PTVS3 family
