Same model may have multiple batches, images only for reference.

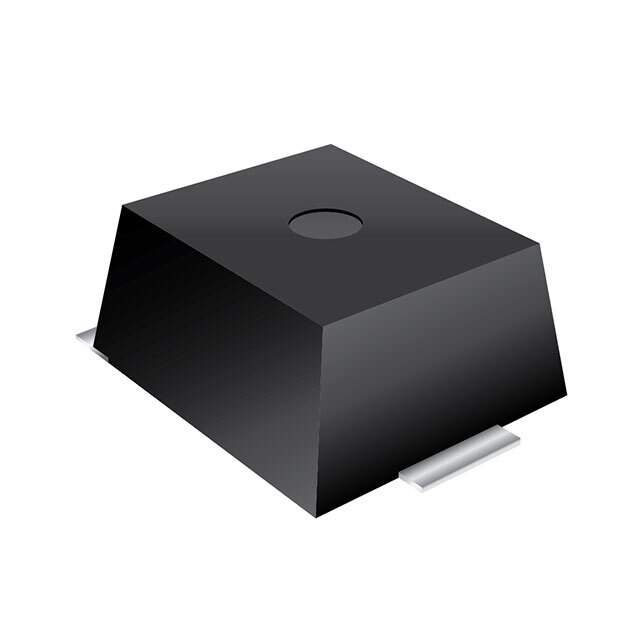

PTVS3-076C-M Real Image
Same model may have multiple batches, images only for reference.

PTVS3-076C-M

Part No PTVS3-076C-M
Manufacturer Bourns Inc.
Catalog TVS - Diodes
Description TVS DIODE 76VWM 135VC / 135V Clamp 3000A (3kA) (8/20µs) Ipp Tvs Diode Surface Mount
Datasheet
PTVS3-076C-M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>TVS - Diodes
Mfr Bourns Inc.
Package Tape & Reel
Type Zener
Bidirectional Channels 1
Voltage - Reverse Standoff (Typ) 76V
Voltage - Breakdown (Min) 85V
Voltage - Clamping (Max) @ Ipp 135V
Current - Peak Pulse (10/1000µs) 3000A (3kA) (8/20µs)
Power Line Protection No
Applications General Purpose
Capacitance @ Frequency 1700pF @ 10kHz
Temperature Range - Operating -55°C ~ 125°C (TJ)
Mounting SMD (SMT)
Package / Case 2-SMD, Flat Lead
Base Product Number PTVS3
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8541.10.0080
Other Names PTVS3-076C-MCT,PTVS3-076C-MTR,PTVS3-076C-MDKR
Standard Package 400
Win Source Part Number 1209371-PTVS3-076C-M
Ultra Librarian 3D Model Ultra Librarian PTVS3-076C-M CAD Model

Description

The PTVS3-076C-M TVS diode is designed for general-purpose applications. The device is from Bourns Inc.

  • Voltage Rating: 76V
  • Package: 2-SMD, Flat Lead
  • Mounting: Through-Hole
  • Capacitance: 1700pF @ 10kHz
  • Current Rating: 3000A (3kA) (8/20µs)
  • Type: Bidirectional
  • RoHS: Affected
