Same model may have multiple batches, images only for reference.

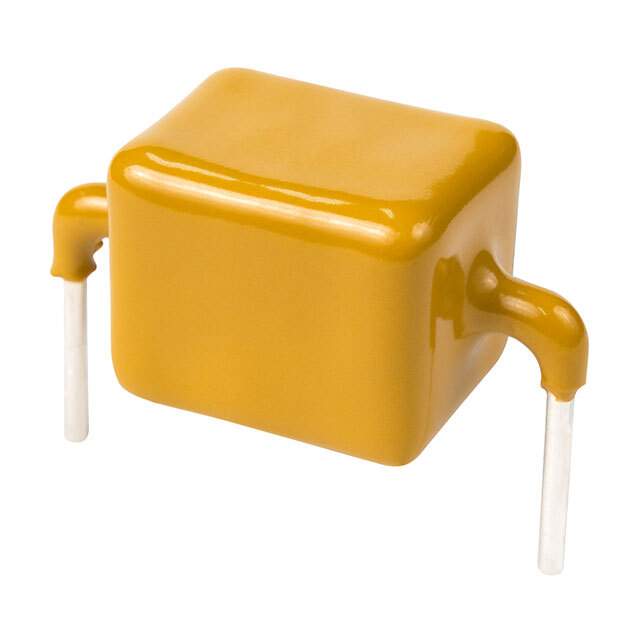

PTVS10-380C-TH Real Image
Same model may have multiple batches, images only for reference.

PTVS10-380C-TH

Part No PTVS10-380C-TH
Manufacturer Bourns Inc.
Catalog TVS - Diodes
Description TVS DIODE 380VWM 520VC
Datasheet
PTVS10-380C-TH Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Estimated Pruduction Lead Time 15 Weeks
Features 520V Clamp 10000A (10kA) (8/20µs) Ipp Tvs Diode Through Hole
Manufacturer Bourns Inc.
Package Tray
Operating Temperature Range -55°C ~ 125°C (TJ)
Mounting Through Hole
Package Axial, Right Angle Bend (24.15mm Center)
Family Name PTVS10
MSL Level Not Applicable
REACH Status REACH Affected
ECCN EAR99
HTSUS 8541.10.0080
Quantity per package 5
Popularity High
Supply and Demand Status Balance
Win Source Part Number 931093-PTVS10-380C-TH
Ultra Librarian 3D Model Ultra Librarian PTVS10-380C-TH CAD Model

Description

The Bourns Inc. PTVS10-380C-TH is a through-hole TVS diode with a clamping voltage of 520V and a peak pulse current of 10000A (10kA) (8/20µs).

  • Clamping Voltage: 520V
  • Peak Pulse Current: 10000A (10kA) (8/20µs)
  • Package Size: Axial, right angle bend (24.15mm center)
  • Supply: Tray of 5 units
  • Operating Temperature Range: -55°C to 125°C
  • RoHS Compliance: Non-RoHS
  • ECCN: EAR99
  • Popularity: Moderate
  • Supply and Demand Status: Balanced
  • Estimated Production Lead Time: 15 weeks
