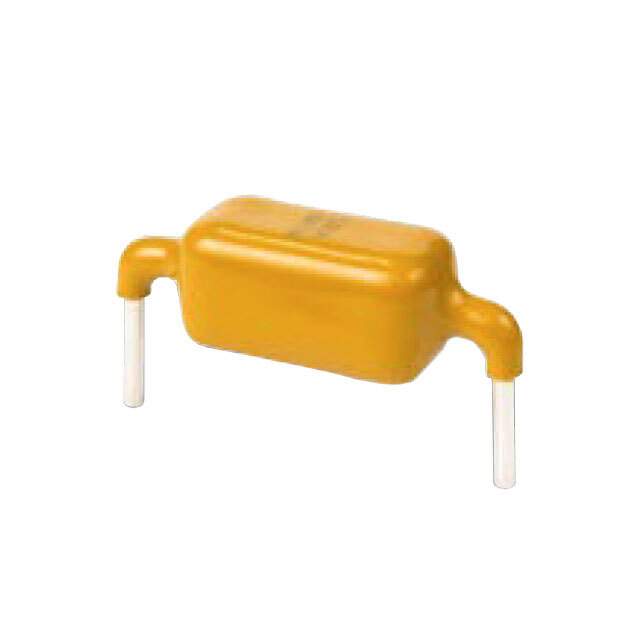

PTVS1-380C-TH Real Image
Same model may have multiple batches, images only for reference.

PTVS1-380C-TH

Part No PTVS1-380C-TH
Manufacturer Bourns Inc.
Catalog TVS - Diodes
Description TVS DIODE 380VWM 520VC / 520V (Typ) Clamp 1000A (1kA) (8/20µs) Ipp Tvs Diode Through Hole
Datasheet
PTVS1-380C-TH Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>TVS - Diodes
Mfr Bourns Inc.
Package Tray
Type Zener
Bidirectional Channels 1
Voltage - Reverse Standoff (Typ) 380V
Voltage - Breakdown (Min) 401V
Voltage - Clamping (Max) @ Ipp 520V (Typ)
Current - Peak Pulse (10/1000µs) 1000A (1kA) (8/20µs)
Power Line Protection No
Applications General Purpose
Capacitance @ Frequency 120pF @ 10kHz
Temperature Range - Operating -55°C ~ 125°C (TJ)
Mounting Type Through Hole
Package / Case Axial, Right Angle Bend (24.15mm Center)
Base Product Number PTVS1
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8541.10.0080
Standard Package 5
Win Source Part Number 1086336-PTVS1-380C-TH
Ultra Librarian 3D Model Ultra Librarian PTVS1-380C-TH CAD Model

Description

The PTVS1-380C-TH is a circuit protection electronic component manufactured by Bourns Inc.

  • Win Source Part Number: 1086336-PTVS1-380C-TH
  • Package Type: axial, right angle bend (24.15mm center)
  • Applications: general purpose
