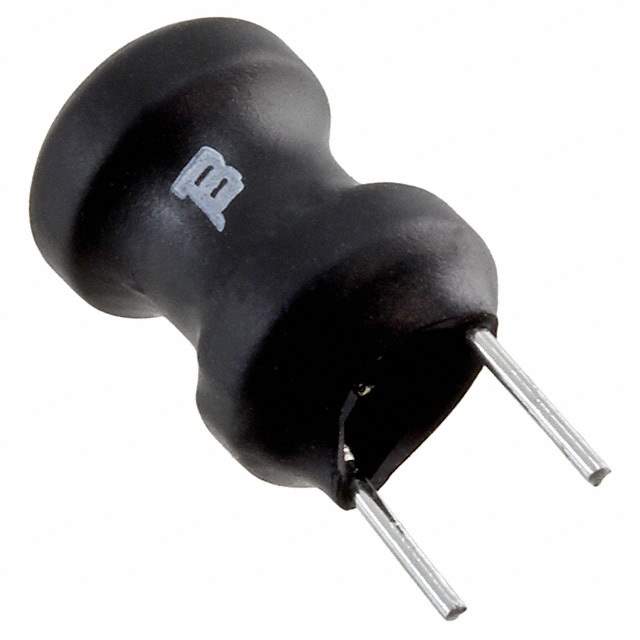

PT12119SL Real Image
Same model may have multiple batches, images only for reference.

PT12119SL

Part No PT12119SL
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Description FIXED IND 560UH 200MA 4 OHM TH / 560 µH Unshielded Wirewound Inductor 200 mA 4Ohm Max Radial, Vertical Cylinder
Datasheet
PT12119SL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series PT121
Package Bulk
Product Status Obsolete
Type Wirewound
Inductance 560 µH
Tolerance ±10%
Current Rating (Amps) 200 mA
Shielding Unshielded
DC Resistance (DCR) 4Ohm Max
Q @ Freq 80 @ 796kHz
Frequency - Self Resonant 1.7MHz
Temperature Range - Operating -20°C ~ 80°C
Inductance Frequency - Test 796 kHz
Mounting Type Through Hole
Package / Case Radial, Vertical Cylinder
Dimension 0.400" Dia (10.15mm)
Height - Seated (Max) 0.500" (12.70mm)
Base Product Number PT121
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Standard Package 200
Win Source Part Number 1086230-PT12119SL
Ultra Librarian 3D Model Ultra Librarian PT12119SL CAD Model

Description

The PT12119SL is a fixed inductor from Bourns Inc. PT12119SL is a fixed inductor. Bourns Inc. manufactures it.

  • Inductance: 560µH
  • Tolerance: ±10%
  • Current Rating: 200 mA
  • DC Resistance (DCR): 4Ohm max
  • Q @ Freq: 80 @ 796kHz
  • Frequency - Self Resonant: 1.7MHz
  • Shielding: Unshielded
  • Package: Radial, Vertical Cylinder
  • Height: 0.500" (12.70mm)
  • Dimension: 0.400" Dia (10.15mm)
  • Application: Power supplies, lighting ballasts, and industrial equipment
