Same model may have multiple batches, images only for reference.

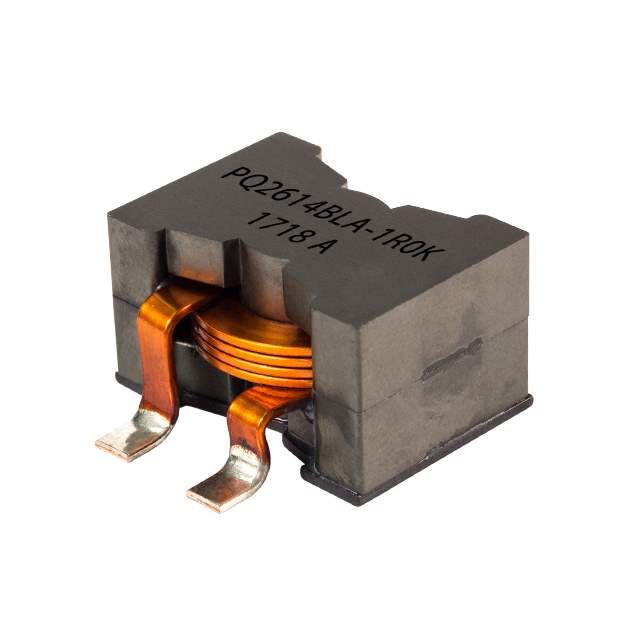

PQ2614BLA-150K Real Image
Same model may have multiple batches, images only for reference.

PQ2614BLA-150K

Part No PQ2614BLA-150K
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Description FIXED IND 15UH 30A 1.6 MOHM SMD / 15 µH Shielded Drum Core, Wirewound Inductor 30 A 1.6mOhm Max Nonstandard
Datasheet
PQ2614BLA-150K Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series PQ2614BLA
Package Tray
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 15 µH
Tolerance ±10%
Current Rating (Amps) 30 A
Current - Saturation (Isat) 9.8A
Shielding Shielded
DC Resistance (DCR) 1.6mOhm Max
Frequency - Self Resonant 15MHz
Ratings AEC-Q200
Temperature Range - Operating -40°C ~ 155°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 1.098" L x 0.780" W (27.90mm x 19.80mm)
Height - Seated (Max) 0.630" (16.00mm)
Base Product Number PQ2614BLA
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Standard Package 25
Win Source Part Number 1015881-PQ2614BLA-150K
Ultra Librarian 3D Model Ultra Librarian PQ2614BLA-150K CAD Model

Description

The Bourns Inc. 1015881-PQ2614BLA-150K is a drum core, wirewound fixed inductor that is ideal for use in various electronic applications.

  • Package: Tray
  • Shielding: Shielded
  • Inductance: 15 μH
  • Height - Seated (Max): 0.630" (16.00mm)
  • ECCN: EAR99
  • MSL Level: 1 (unlimited)
  • Current Rating (Amps): 30 A
  • Inductance Frequency - Test: 100 kHz
  • REACH Status: Does not have an REACH status
  • HTSUS Code: 8504.50.4000
