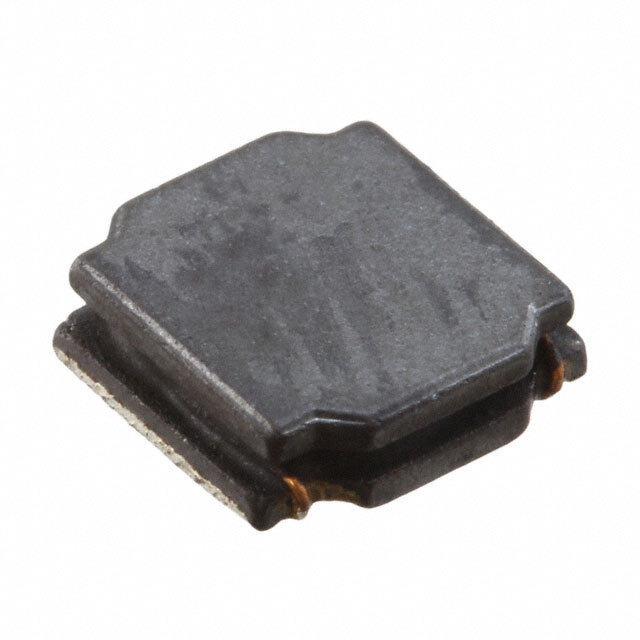

Same model may have multiple batches, images only for reference.
PM5022S-470M-RC Bourns Inc. – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

PM5022S-470M-RC

Part No PM5022S-470M-RC
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Description FIXED IND 47UH 2A 110 MOHM SMD
Datasheet
PM5022S-470M-RC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 47 µH
Tolerance ±20%
Current Rating (Amps) 2 A
Current - Saturation (Isat) 4.2A
Shielding Shielded
DC Resistance (DCR) 110mOhm
Q @ Freq 40 @ 2.52MHz
Frequency - Self Resonant 8MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting Type Surface Mount
Case / Package Nonstandard
Size / Dimension 0.720" L x 0.551" W (18.30mm x 14.00mm)
Height - Seated (Max) 0.280\
Package Tape & Reel
Supply and Demand Status Limited
Win Source Part Number 1532910-PM5022S-470M-RC
Ultra Librarian 3D Model Ultra Librarian PM5022S-470M-RC CAD Model

Description

N
