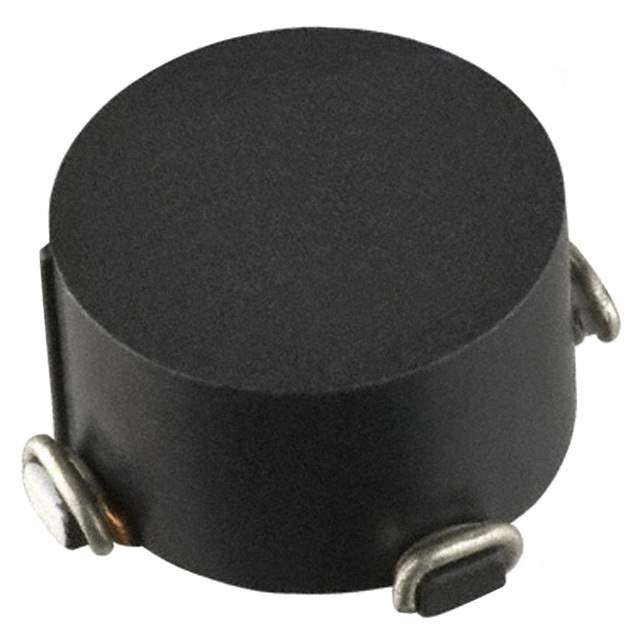

PM3700-50-RC Real Image
Same model may have multiple batches, images only for reference.

PM3700-50-RC

Part No PM3700-50-RC
Manufacturer Bourns Inc.
Catalog Common Mode Chokes
Description CMC 2MH 3.5A 2LN SMD / 2 mH @ 1 kHz 2 Line Common Mode Choke Surface Mount 3.5A DCR 30mOhm
Datasheet
PM3700-50-RC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr Bourns Inc.
Series PM3700
Package Tape & Reel
Number of Lines 2
Inductance @ Frequency 2 mH @ 1 kHz
Current Rating (Max) 3.5A
DC Resistance (DCR) (Max) 30mOhm
Temperature Range - Operating -55°C ~ 125°C
Mounting SMD (SMT)
Dimension 0.850" L x 0.850" W (21.60mm x 21.60mm)
Height (Max) 0.450" (11.43mm)
Package / Case Horizontal, 4 PC Pad
Base Product Number PM3700
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Other Names M3939DKR,M3939TR,M3939CT,M3939,PM370050RC,M3939-ND
Standard Package 200
Win Source Part Number 1073823-PM3700-50-RC
Ultra Librarian 3D Model Ultra Librarian PM3700-50-RC CAD Model

Description

Bourns Inc. has designed the PM3700, a common mode choke with a voltage rating of AC and DC.

  • Voltage Rating: AC and DC
  • Current Rating: 3.5A
  • Inductance: 2 mH @ 1 kHz
  • Mounting Technology: SMD (SMT)
  • Package: Horizontal, 4 PC pad
  • Temperature Range: -55°C to 125°C
  • Dimension: 0.850" L x 0.850" W (21.60mm x 21.60mm)
  • Ideal for: Applications related to filtering in the electronic industry.
