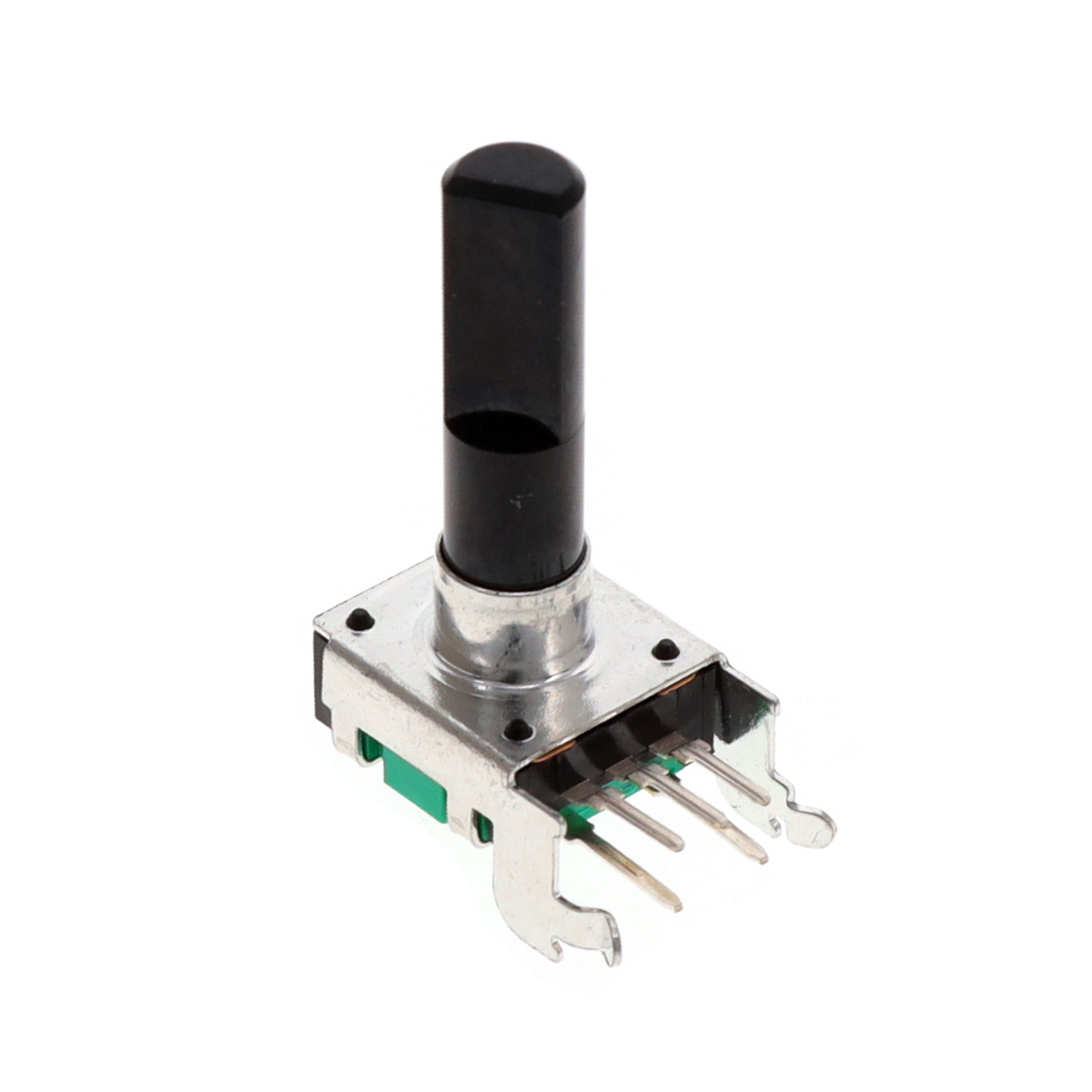

Same model may have multiple batches, images only for reference.
PEC12R-4225F-N0024 Bourns Inc. – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

PEC12R-4225F-N0024

Part No PEC12R-4225F-N0024
Manufacturer Bourns Inc.
Catalog Encoders
Description ENCODER INCRE QUAD HORIZN PC PIN
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number 1548102-PEC12R-4225F-N0024
Supply and Demand Status Shortage
Package Tray
Rotational Life (Cycles Min) 30K
Termination Style PC Pin
Orientation Horizontal
Mounting Type PCB, Through Hole
Built in Switch No
Detent Yes
Actuator Type 6mm Dia Flatted End
Pulses per Revolution 24
Output Type Quadrature (Incremental)
Encoder Type Incremental
Programmable Not Verified
Ultra Librarian 3D Model Ultra Librarian PEC12R-4225F-N0024 CAD Model

Description

N
