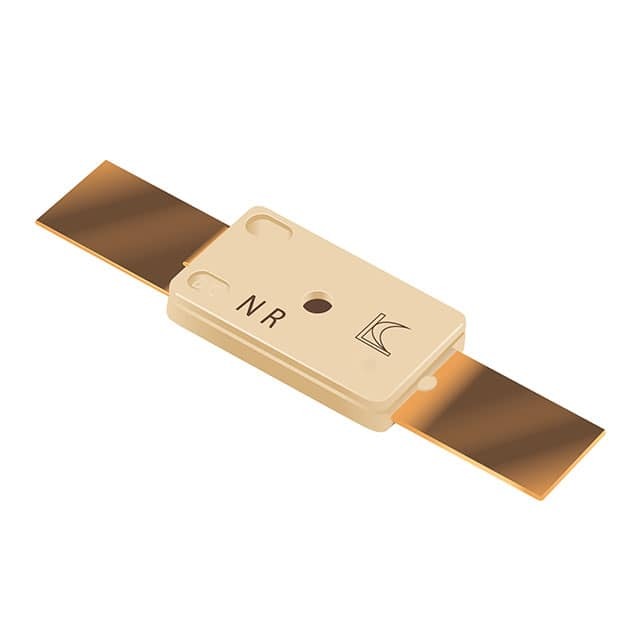

Same model may have multiple batches, images only for reference.
NR77AB0
Same model may have multiple batches, images only for reference.

NR77AB0

Part No NR77AB0
Manufacturer Bourns Inc.
Catalog Fuses
Description THERMOSTAT 77DEG C NC STRAP SLDR
Datasheet
NR77AB0 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Thermal Cutoffs (Thermal Fuses)
Mfr Bourns Inc.
Series Komatsulite™, NR
Package Bag
Product Status Active
Type Breaker
Rated Functioning Temperature 77°C (171°F)
Reset Temperature 40°C (104°F)
Voltage Rating - DC 28
Current Rating (Amps) 25 A
Approval Agency cUL, TUV, UL
Package / Case Nonstandard
Base Product Number NR77
Standard Package 500 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.20.0020
California Prop 65 Warning Information
Win Source Part Number 887545-NR77AB0
Ultra Librarian 3D Model Ultra Librarian NR77AB0 CAD Model

Description

The NR77AB0 is a Komatsulite™ thermal cutoff designed to protect against over-temperature conditions in electronic devices.

  • Reset Temperature: 40°C
  • Rated Functioning Temperature: 77°C
  • Voltage Rating: 28V
  • Current Rating: 25A
  • Package: Nonstandard
  • Packaging: Bag format with 500 pieces
  • Status: Active product
  • Manufacturer: Bourns Inc.
  • Approvals: cUL, TUV, and UL
