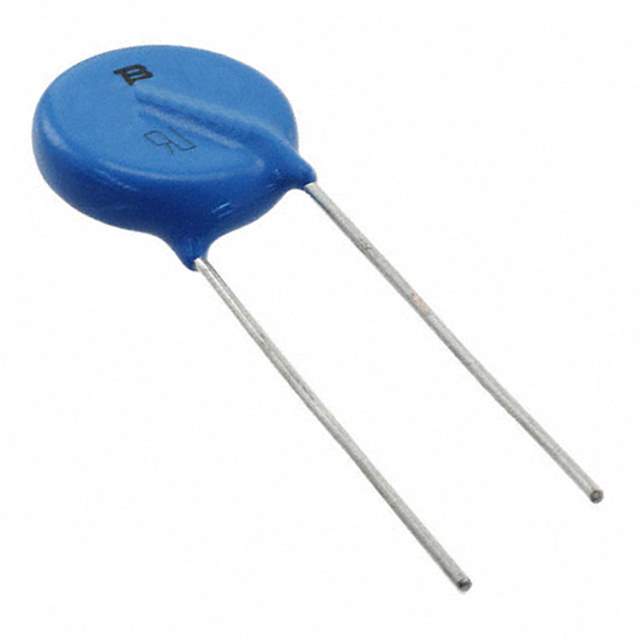

MOV-14D561KTR Real Image
Same model may have multiple batches, images only for reference.

MOV-14D561KTR

Part No MOV-14D561KTR
Manufacturer Bourns Inc.
Catalog TVS - Varistors, MOVs
Description VARISTOR 560V 4.5KA DISC 14MM
Datasheet
MOV-14D561KTR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Bourns Inc.
Packaging Reel - TR
Status Active
Varistor Voltage (Min) 504V
Varistor Voltage (Typ) 560V
Varistor Voltage (Max) 616V
Current - Surge 4.5kA
Energy 125J
Number of Circuits 1
Maximum AC Volts 350VAC
Maximum DC Volts 460VDC
Capacitance @ Frequency 360pF @ 1kHz
Temperature Range - Operating -40°C to 85°C (TA)
Mounting Through Hole
Dimension Disc 14mm
Win Source Part Number 149004-MOV-14D561KTR
Ultra Librarian 3D Model Ultra Librarian MOV-14D561KTR CAD Model

Description

The Bourns Inc. 149004-MOV-14D561KTR is a through-hole mounted circuit protection device that is designed to protect electronic circuits from voltage surges.

  • Capacitance: 360pF @ 1kHz
  • Varistor Voltage: 560V
  • Maximum Surge Current: 4.5kA
  • Maximum AC Voltage: 350VAC
  • Maximum DC Voltage: 460VDC
  • Energy Rating: 125J
  • Suitable for: Use in a variety of circuit protection applications
  • Packaging: Reel - TR
