Same model may have multiple batches, images only for reference.

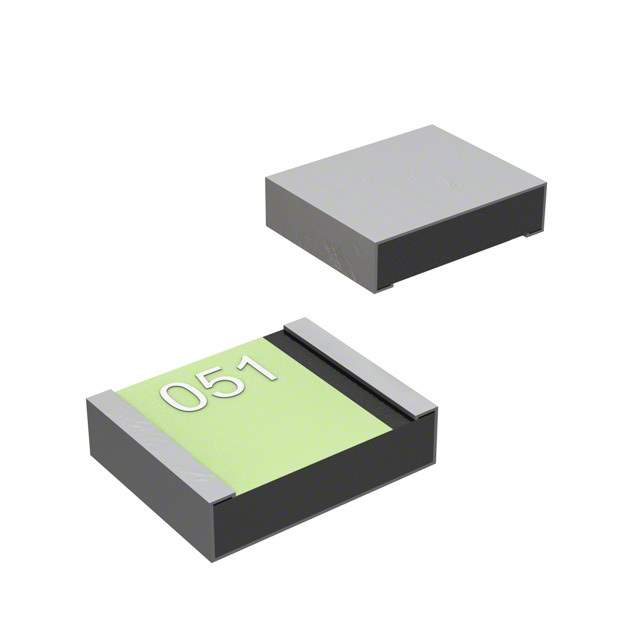

MF-USMD050-2 Real Image
Same model may have multiple batches, images only for reference.

MF-USMD050-2

Part No MF-USMD050-2
Manufacturer Bourns Inc.
Catalog PTC Resettable Fuses
Description FUSE RESETTABLE .50A 13.2V SMD
Datasheet
MF-USMD050-2 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Bourns Inc.
Packaging Reel - TR
Status Obsolete(EOL)
Type Polymeric
Voltage - Max 13.2V
Current - Max 40A
Current - Hold (Ih) (Max) 500mA
Current - Trip (It) 1A
Time to Trip 100ms
Resistance - Initial (Ri) (Min) 180 mOhm
Resistance - Post Trip (R1) (Max) 900 mOhm
Temperature Range - Operating -40°C to 85°C
Mounting SMD (SMT)
Dimension 0.127" L x 0.102" W (3.22mm x 2.58mm)
Thickness (Max) 0.024" (0.62mm)
Approvals CSA, TUV, UR
Win Source Part Number 003459-MF-USMD050-2
Ultra Librarian 3D Model Ultra Librarian MF-USMD050-2 CAD Model

Description

The Bourns Inc. MF-USMD050-2 Polymeric Fuse is a high-quality electronic component designed for use in circuit protection.

  • Packaging: reel package
  • Mounting: surface mount technology
  • Approvals: CSA, TUV, and UR approved
  • Maximum Voltage: 13.2V
  • Maximum Current: 40A
  • Current Hold (Ih): 500mA
  • Current Trip (It): 1A
  • Time to Trip: 100ms
  • Resistance @ 25°C: not applicable
  • Temperature Range: -40°C to 85°C
  • Status: obsolete (EOL)
  • Description: an excellent choice for those looking for a high-quality polymeric fuse.
