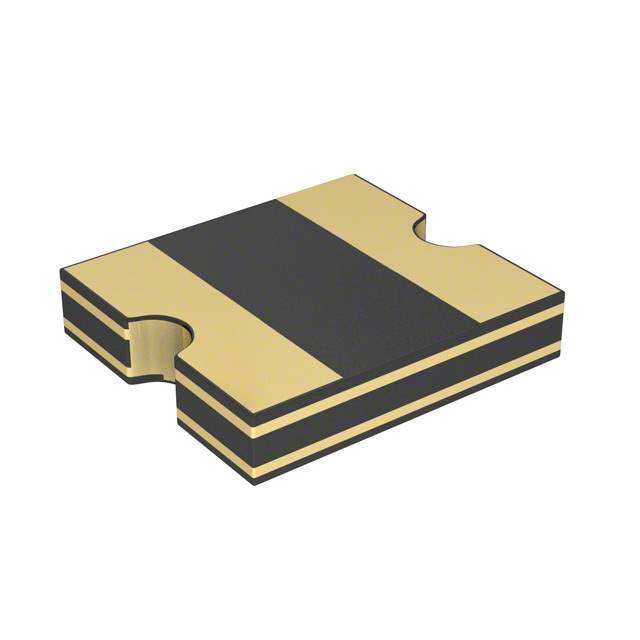

MF-SMDF200-2 Bourns Inc. MF-SMDF200-2 Real Image
Same model may have multiple batches, images only for reference.
MF-SMDF200-2 Bourns Inc. MF-SMDF200-2 Real Image
MF-SMDF200-2 Bourns Inc. MF-SMDF200-2 Real Image
Same model may have multiple batches, images only for reference.

MF-SMDF200-2

Part No MF-SMDF200-2
Manufacturer Bourns Inc.
Catalog PTC Resettable Fuses
Description MF-SMDF Series - PTC Resettable Fuses | PTC RESET FUSE 10V 2A 2018
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Bourns Inc.
Packaging Reel
Type Polymeric
Voltage - Max 10V
Current - Max 40A
Current - Hold (Ih) (Maximum) 2A
Current - Trip (It) 4A
Time to Trip 2.4s
Resistance - Initial (Ri) (Minimum) 30 mOhms
Resistance - Post Trip (R1) (Maximum) 100 mOhms
Temperature Range - Operating -40°C ~ 85°C
Mounting Style SMD
Manufacturer Package 2018 (5045 Metric), Concave
Parts Dimension 0.200" L x 0.180" W (5.08mm x 4.58mm)
Thickness (Maximum) 0.033" (0.85mm)
Family Part Number MF-SMDF
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 1221791-MF-SMDF200-2
Manufacturer Homepage www.bourns.com
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian MF-SMDF200-2 CAD Model

Description

The Bourns Inc. MF-SMDF200-2 is a polymeric type surface mount device that is used for circuit protection.

  • Maximum Voltage: 10V
  • Maximum Current: 40A
  • Current Trip: 4A
  • Time to Trip: 2.4s
  • Operating Temperature: -40°C to 85°C
  • Thickness: 0.033 inches (0.85mm)
  • Manufacturer: Bourns Inc.
  • Website: www.bourns.com
