Same model may have multiple batches, images only for reference.

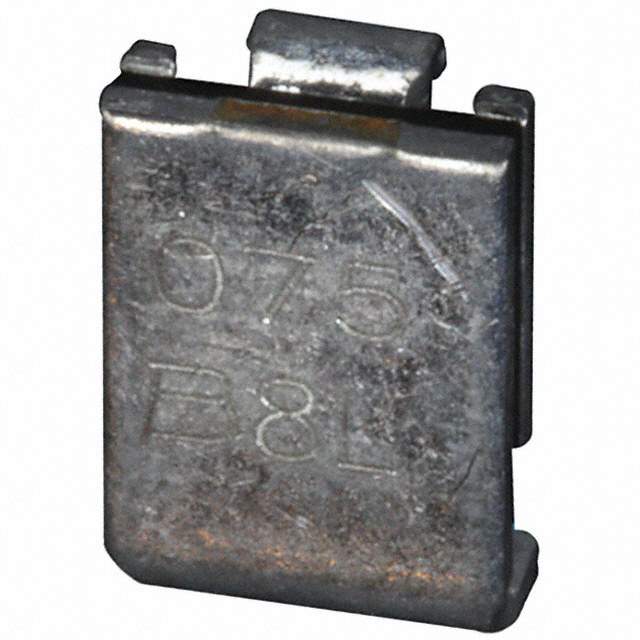

MF-SM100/33-2-99 Real Image
Same model may have multiple batches, images only for reference.

MF-SM100/33-2-99

Part No MF-SM100/33-2-99
Manufacturer Bourns Inc.
Catalog PTC Resettable Fuses
Description PTC RESET FUSE 33V 1.1A 2SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Bourns Inc.
Packaging Reel
Type Polymeric
Voltage - Max 33V
Current - Max 40A
Current - Hold (Ih) (Maximum) 1.1A
Current - Trip (It) 2.2A
Time to Trip 500ms
Resistance - Initial (Ri) (Minimum) 120 mOhms
Resistance - Post Trip (R1) (Maximum) 410 mOhms
Temperature Range - Operating -40°C ~ 85°C
Ratings AEC-Q200
Mounting Style SMD
Manufacturer Package 2-SMD
Parts Dimension 0.287" L x 0.214" W (7.31mm x 5.44mm)
Thickness (Maximum) 0.118" (3.00mm)
Approvals cURus, TUV
Family Part Number MF-SM
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 715276-MF-SM100/33-2-99
Popularity Low
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian MF-SM100/33-2-99 CAD Model

Description

Bourns Inc. presents a polymeric SMD circuit protection device, the 715276-MF-SM100/33-2-99.

  • AEC-Q200: Yes
  • Voltage (Maximum): 33V
  • Current (Maximum): 40A
  • Current Trip: 2.2A
  • Time to Trip: 500ms
  • Approvals: cURus and TUV
  • Packaging: Reel
  • Operating Temperature: -40°C to 85°C
  • Manufacturer Package: 2-SMD
  • Current Hold (Ih) (Maximum): 1.1A
  • Thickness (Maximum): 0.118 inches (3.00mm)
  • Resistance - Initial (Ri) (Minimum): 120 mOhms
  • Resistance - Post Trip (R1) (Maximum): 410 mOhms
