Same model may have multiple batches, images only for reference.

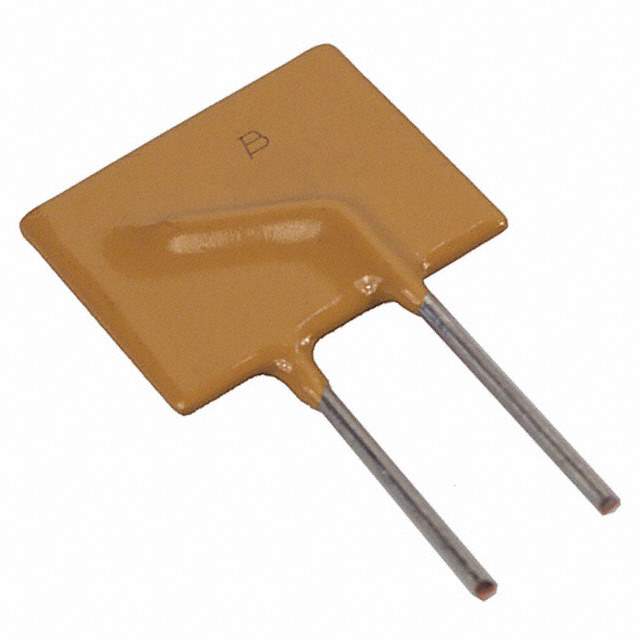

MF-R600 Real Image
Same model may have multiple batches, images only for reference.

MF-R600

Part No MF-R600
Manufacturer Bourns Inc.
Catalog PTC Resettable Fuses
Description FUSE PTC RESETTABLE
Datasheet
MF-R600 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Bourns Inc.
Packaging Bulk
Status Active
Type Polymeric
Voltage - Max 30V
Current - Max 40A
Current - Hold (Ih) (Max) 6A
Current - Trip (It) 12A
Time to Trip 16s
Resistance - Initial (Ri) (Min) 5 mOhm
Resistance - Post Trip (R1) (Max) 40 mOhm
Temperature Range - Operating -40°C to 85°C
Mounting Through Hole
Dimension 0.760" L x 0.118" W (19.30mm x 3.00mm)
Height - Seated (Max) 1.256" (31.90mm)
Lead Spacing 0.402" (10.20mm)
Approvals cURus, TUV
Win Source Part Number 003424-MF-R600
Ultra Librarian 3D Model Ultra Librarian MF-R600 CAD Model

Description

The Bourns Inc. 003424-MF-R600 is a polymeric type circuit protection component that is approved by cURus and TUV.

  • Voltage Rating: 30V
  • Maximum Current: 40A
  • Mounting: Through-hole
  • Lead Spacing: 0.402" (10.20mm)
  • Height: 1.256" (31.90mm)
  • Dimension: 0.760" L x 0.118" W (19.30mm x 3.00mm)
  • Current Hold: 6A
  • Current Trip: 12A
  • Time to Trip: 16s
  • Application: Commonly used in various electronic devices
  • Popularity: Low in the market
