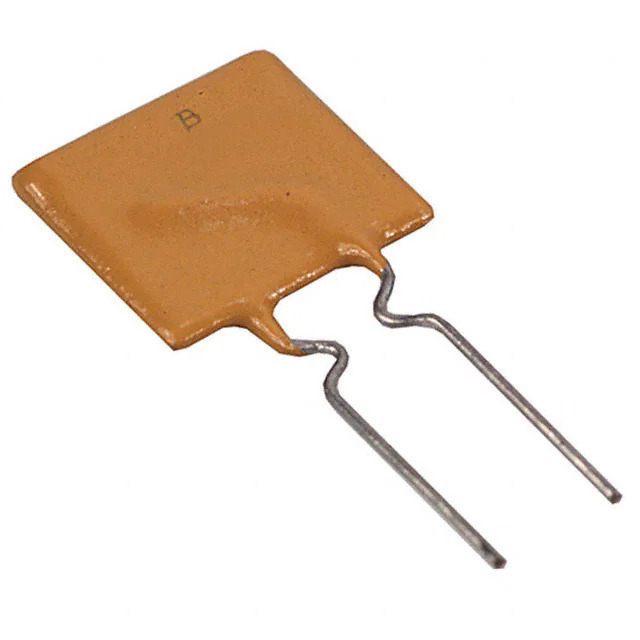

MF-R090-0-9 Bourns Inc.
Same model may have multiple batches, images only for reference.

MF-R090-0-9

Part No MF-R090-0-9
Manufacturer Bourns Inc.
Catalog PTC Resettable Fuses
Description PTC RESET FUSE 30V 900MA RADIAL / Polymeric PTC Resettable Fuse 30V 900 mA Ih Through Hole Radial, Disc
Datasheet
MF-R090-0-9 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - PTC Resettable Fuses
Mfr Bourns Inc.
Series Multifuse®, MF-R
Package Bulk
Product Status Active
Type Polymeric
Voltage - Max 30V
Current - Hold (Ih) (Max) 900 mA
Current - Trip (It) 1.8 A
Current - Max 40 A
Time to Trip 5.9 s
Resistance - Initial (Ri) (Min) 70 mOhms
Resistance - Post Trip (R1) (Max) 220 mOhms
Temperature Range - Operating -40°C ~ 85°C
Ratings -
Mounting Type Through Hole
Package / Case Radial, Disc
Size / Dimension 0.291" L x 0.118" W (7.40mm x 3.00mm)
Height - Seated (Max) 0.480" (12.20mm)
Thickness (Max) -
Lead Spacing 0.201" (5.10mm)
Approval Agency cURus, TUV
Base Product Number MF-R090
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.40.8070
Win Source Part Number 1361776-MF-R090-0-9
Ultra Librarian 3D Model Ultra Librarian MF-R090-0-9 CAD Model

Description

The MF-R is a polymeric PTC resettable fuse from Bourns Inc. used for circuit protection.

  • Operating Temperature: -40°C to 85°C
  • Mounting Type: Through Hole
  • Package/Case: Radial disc
  • Current Rating: 40 A
  • Maximum Voltage: 30V
  • Product Status: Active
  • Category: Circuit Protection
  • Commonly Used In: Power supplies, battery packs, and automotive electronics.
