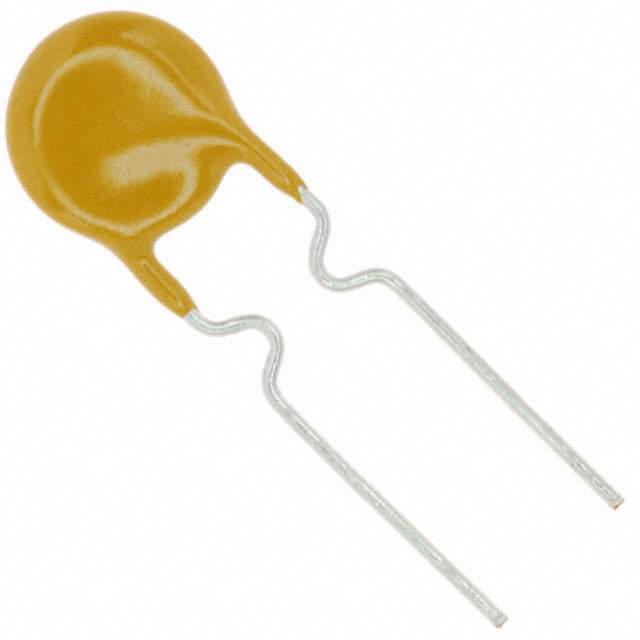

MF-R050 Real Image
Same model may have multiple batches, images only for reference.

MF-R050

Part No MF-R050
Manufacturer Bourns Inc.
Catalog PTC Resettable Fuses
Description FUSE PTC RESETTABLE .5A HOLD
Datasheet
MF-R050 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Bourns Inc.
Packaging Bulk
Status Active
Type Polymeric
Voltage - Max 60V
Current - Max 40A
Current - Hold (Ih) (Max) 500mA
Current - Trip (It) 1A
Time to Trip 4s
Resistance - Initial (Ri) (Min) 410 mOhm
Resistance - Post Trip (R1) (Max) 1.17 Ohm
Temperature Range - Operating -40°C to 85°C
Mounting Through Hole
Dimension 0.311" Dia x 0.122" W (7.90mm x 3.10mm)
Height - Seated (Max) 0.539" (13.70mm)
Lead Spacing 0.201" (5.10mm)
Approvals cURus, TUV
Win Source Part Number 003413-MF-R050
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian MF-R050 CAD Model

Description

The MF-R050 electronic component is a polymeric circuit protection product manufactured by Bourns Inc.

  • Popularity: Medium popularity in the market
  • Supply and Demand Status: Sufficient
  • Voltage Rating: 60V
  • Maximum Current: 40A
  • Time to Trip: 4s
  • Initial Resistance: 410 mOhm
  • Post-Trip Resistance: 1.17 Ohm
  • Operating Temperature Range: -40°C to 85°C
  • Approvals: cURus and TUV approvals
  • Recommendation: Recommended to consult an expert before using it
