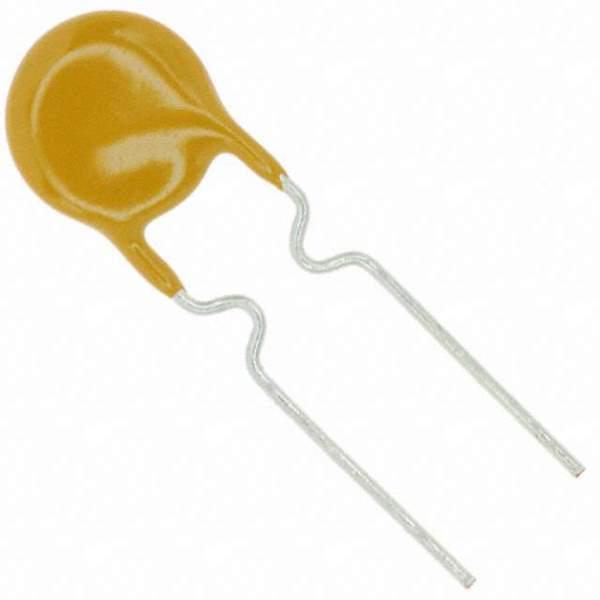

MF-R050-2 Real Image
Same model may have multiple batches, images only for reference.

MF-R050-2

Part No MF-R050-2
Manufacturer Bourns Inc.
Catalog PTC Resettable Fuses
Description PTC RESET FUSE 60V 500MA RADIAL
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Bourns Inc.
Packaging Cut Tape (CT)
Type Polymeric
Voltage - Max 60V
Current - Max 40A
Current - Hold (Ih) (Maximum) 500mA
Current - Trip (It) 1A
Time to Trip 4s
Resistance - Initial (Ri) (Minimum) 410 mOhms
Resistance - Post Trip (R1) (Maximum) 1.17 Ohms
Temperature Range - Operating -40°C ~ 85°C
Mounting Style Through Hole
Manufacturer Package Radial, Disc
Parts Dimension 0.311" Dia x 0.122" T (7.90mm x 3.10mm)
Height - Seated (Maximum) 0.539" (13.70mm)
Lead Spacing 0.201" (5.10mm)
Approvals cURus, TUV
Family Part Number MF-R050
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 719422-MF-R050-2
Popularity Low
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian MF-R050-2 CAD Model

Description

The Bourns MF-R050-2 is a polymeric circuit protection device that is suitable for through-hole mounting.

  • Voltage Rating: 60V
  • Current Rating: 40A
  • Current Trip: 1A
  • Time to Trip: 4s
  • Resistance: 410 mOhms
  • Maximum Post-Trip Resistance: 1.17 Ohms
  • Approvals: cURus and TUV
  • Lead Spacing: 0.201" (5.10mm)
  • Applications: circuit protection
