Same model may have multiple batches, images only for reference.

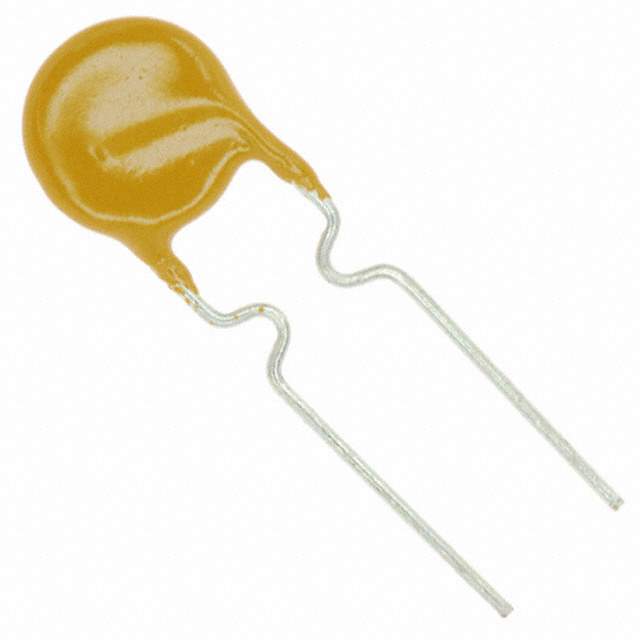

MF-R030 Real Image
Same model may have multiple batches, images only for reference.

MF-R030

Part No MF-R030
Manufacturer Bourns Inc.
Catalog PTC Resettable Fuses
Description PTC Resettable Fuse 0.3A(hold) 0.6A(trip) 60V 40A 0.5W 3s 0.76Ohm Radial 7.4 X 3.1mm Bulk Automotive / FUSE PTC RESETTABLE
Datasheet
MF-R030 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Bourns Inc.
Packaging Reel - TR
Status Active
Type Polymeric
Voltage - Max 60V
Current - Max 40A
Current - Hold (Ih) (Max) 300mA
Current - Trip (It) 600mA
Time to Trip 3s
Resistance - Initial (Ri) (Min) 760 mOhm
Resistance - Post Trip (R1) (Max) 2.1 Ohm
Temperature Range - Operating -40°C to 85°C
Mounting Through Hole
Dimension 0.291" Dia x 0.122" W (7.40mm x 3.10mm)
Height - Seated (Max) 0.528" (13.40mm)
Lead Spacing 0.201" (5.10mm)
Approvals cURus, TUV
Win Source Part Number 003411-MF-R030
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Family Name MF-R
Introduction Date September 13, 2001
ECCN EAR99
Country of Origin China
Halogen Free Compliant
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian MF-R030 CAD Model

Description

The Bourns Inc. 003411-MF-R030 is a polymeric circuit protection component that is widely used in various applications.

  • Function: Designed to provide protection against overcurrent and short circuits
  • Current-Hold: 300mA
  • Current-Trip: 600mA
  • Halogen-Free: Yes
  • Environmental Regulations: Compliant
  • Recommendation: Recommended to use this product in circuits where high reliability and safety are required
