Same model may have multiple batches, images only for reference.

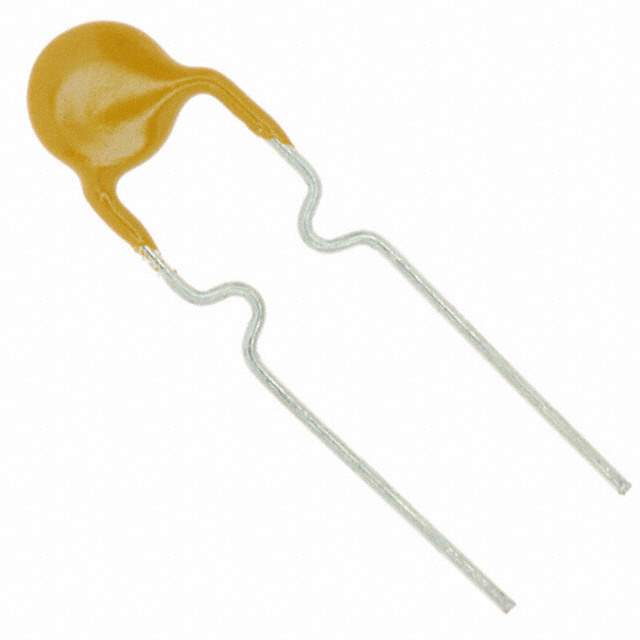

MF-R020 Real Image
Same model may have multiple batches, images only for reference.

MF-R020

Part No MF-R020
Manufacturer Bourns Inc.
Catalog PTC Resettable Fuses
Description FUSE PTC RESETTABLE .2A HOLD
Datasheet
MF-R020 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Bourns Inc.
Packaging Bulk
Status Active
Type Polymeric
Voltage - Max 60V
Current - Max 40A
Current - Hold (Ih) (Max) 200mA
Current - Trip (It) 400mA
Time to Trip 2.2s
Resistance - Initial (Ri) (Min) 1.5 Ohm
Resistance - Post Trip (R1) (Max) 4.4 Ohm
Temperature Range - Operating -40°C to 85°C
Mounting Through Hole
Dimension 0.291" Dia x 0.122" W (7.40mm x 3.10mm)
Height - Seated (Max) 0.500" (12.70mm)
Lead Spacing 0.201" (5.10mm)
Approvals cURus, TUV
Win Source Part Number 084234-MF-R020
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian MF-R020 CAD Model

Description

Bourns Inc. presents a bulk packaged polymeric type circuit protection component with a maximum voltage of 60V and maximum current of 40A.

  • Mounting: Through-hole mounted
  • Lead Spacing: 0.201 inches
  • Height: 0.500 inches
  • Approvals: cURus and TUV
  • Operating Temperature Range: -40°C to 85°C
  • Resistance (initial): 1.5 Ohm
  • Resistance (post-trip): 4.4 Ohm
  • Current Hold (Ih): 200mA
  • Current Trip (It): 400mA
  • Time to Trip: 2.2s
  • Applications: Widely used in circuit protection applications
  • Supply and Demand Status: Sufficient
