Same model may have multiple batches, images only for reference.

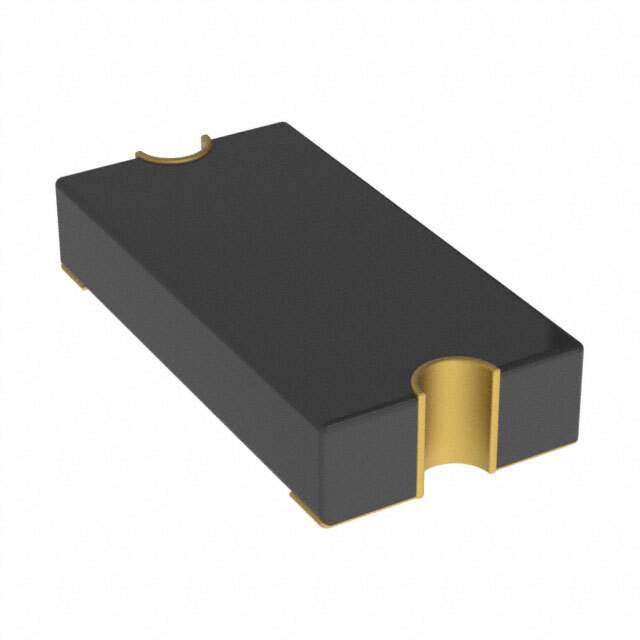

MF-NSMF050-2 Real Image
Same model may have multiple batches, images only for reference.

MF-NSMF050-2

Part No MF-NSMF050-2
Manufacturer Bourns Inc.
Catalog PTC Resettable Fuses
Description PTC RESETTABLE .50A 13.2V 1206
Datasheet
MF-NSMF050-2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Bourns Inc.
Packaging Reel - TR
Status Active
Type Polymeric
Voltage - Max 13.2V
Current - Max 100A
Current - Hold (Ih) (Max) 500mA
Current - Trip (It) 1A
Time to Trip 100ms
Resistance - Initial (Ri) (Min) 150 mOhm
Resistance - Post Trip (R1) (Max) 700 mOhm
Temperature Range - Operating -40°C to 85°C
Ratings AEC-Q200
Mounting SMD (SMT)
Dimension 0.126" L x 0.063" W (3.20mm x 1.60mm)
Thickness (Max) 0.033" (0.85mm)
Approvals cURus, TUV
Win Source Part Number 023200-MF-NSMF050-2
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Application Field Used in Automotive, Computers & Computer Peripherals, Consumer Electronics, Communications & Networking, Imaging, Video & Vision, Defence, Military & Aerospace
Ultra Librarian 3D Model Ultra Librarian MF-NSMF050-2 CAD Model

Description

The Bourns Inc. 023200-MF-NSMF050-2 is a polymeric type circuit protection component that is approved by cURus and TUV.

  • Voltage Rating: 13.2V
  • Maximum Current: 100A
  • Mounting Type: surface-mountable
  • Thickness: 0.033" (0.85mm)
  • Rated AEC-Q200: Yes
  • Operating Temperature Range: -40°C to 85°C
  • Current Hold: 500mA
  • Current Trip: 1A
  • Time to Trip: 100ms
  • Commonly used in: the automotive, computers and computer peripherals, consumer electronics, communications and networking, imaging, video and vision, defence, military and aerospace fields
