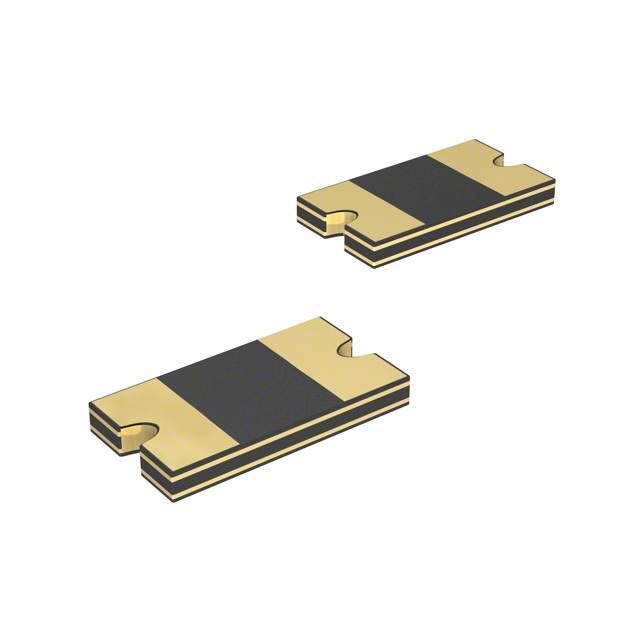

Same model may have multiple batches, images only for reference.
MF-NSMF012-2 Bourns Inc.
Same model may have multiple batches, images only for reference.

MF-NSMF012-2

Part No MF-NSMF012-2
Manufacturer Bourns Inc.
Catalog PTC Resettable Fuses
Description PTC RESETTABLE .12A 30V 1206
Datasheet
MF-NSMF012-2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Bourns Inc.
Packaging Reel - TR
Status Active
Type Polymeric
Voltage - Max 30V
Current - Max 10A
Current - Hold (Ih) (Max) 120mA
Current - Trip (It) 290mA
Time to Trip 200ms
Resistance - Initial (Ri) (Min) 1.35 Ohm
Resistance - Post Trip (R1) (Max) 8.5 Ohm
Temperature Range - Operating -40°C to 85°C
Ratings AEC-Q200
Mounting SMD (SMT)
Dimension 0.126" L x 0.063" W (3.20mm x 1.60mm)
Thickness (Max) 0.043" (1.10mm)
Approvals cURus, TUV
Win Source Part Number 023196-MF-NSMF012-2
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Application Field Used in Automotive, Computers & Computer Peripherals, Consumer Electronics, Communications & Networking, Imaging, Video & Vision, Defence, Military & Aerospace
Family Name MF-NSMF
Introduction Date January 26, 2004
ECCN EAR99
Country of Origin China
Halogen Free Compliant
Estimated EOL Date 2023
Ultra Librarian 3D Model Ultra Librarian MF-NSMF012-2 CAD Model

Description

Bourns Inc. MF-NSMF012-2 is a polymeric type circuit protection component that is approved by cURus and TUV.

  • Mounting: surface mount technology (SMT)
  • Maximum Thickness: 0.043 inches (1.10mm)
  • Maximum Voltage Rating: 30V
  • Maximum Current: 10A
  • Current Hold (Ih): 120mA
  • Current Trip (It): 290mA
  • Time to Trip: 200ms
  • Resistance: 1.35 Ohm (initial)
  • Resistance: 8.5 Ohm (post trip)
  • Common Applications: automotive, computers and computer peripherals, consumer electronics, communications and networking, imaging, video and vision, defence, military and aerospace applications
  • Compliance: halogen-free
  • Standard: AEC-Q200 standard
  • Made in: China
  • Estimated EOL date: 2023
