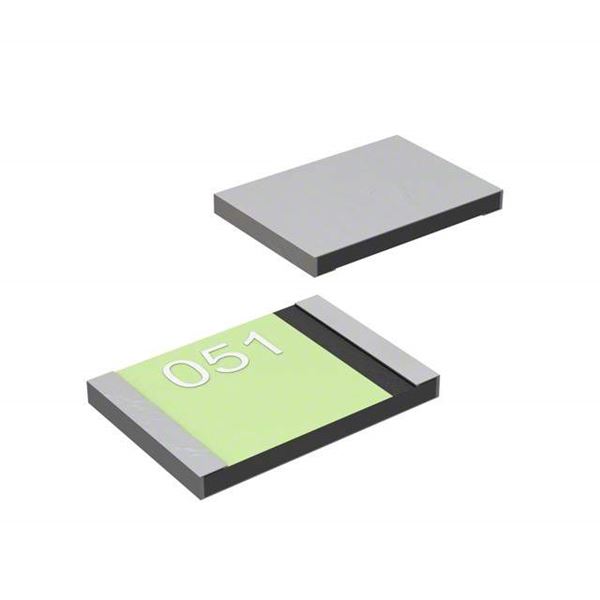

MF-MSMD075-2 Bourns Inc.
Same model may have multiple batches, images only for reference.

MF-MSMD075-2

Part No MF-MSMD075-2
Manufacturer Bourns Inc.
Catalog PTC Resettable Fuses
Description FUSE RESETTABLE .75A HOLD SMD
Datasheet
MF-MSMD075-2 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Bourns Inc.
Packaging Reel - TR
Status Obsolete(EOL)
Type Polymeric
Voltage - Max 13.2V
Current - Max 100A
Current - Hold (Ih) (Max) 750mA
Current - Trip (It) 1.5A
Time to Trip 200ms
Resistance - Initial (Ri) (Min) 110 mOhm
Resistance - Post Trip (R1) (Max) 450 mOhm
Temperature Range - Operating -40°C to 85°C
Mounting SMD (SMT)
Dimension 0.179" L x 0.020" W (4.55mm x 0.50mm)
Thickness (Max) 0.134" (3.41mm)
Approvals CSA, TUV, UR
Win Source Part Number 111397-MF-MSMD075-2
Ultra Librarian 3D Model Ultra Librarian MF-MSMD075-2 CAD Model

Description

The Bourns Inc. 111397-MF-MSMD075-2 is a polymeric type circuit protection component that is CSA, TUV, and UR approved.

  • Mounting Style: SMD (SMT)
  • Maximum Thickness: 0.134" (3.41mm)
  • Maximum Voltage: 13.2V
  • Maximum Current: 100A
  • Current Hold (Ih): 750mA
  • Current Trip (It): 1.5A
  • Time to Trip: 200ms
  • Temperature Range: -40°C to 85°C
  • Dimension: 0.179" L x 0.020" W (4.55mm x 0.50mm)
  • Initial Resistance (Ri): minimum of 110 mOhm
  • Post-Trip Resistance (R1): maximum of 450 mOhm
  • Status: obsolete (EOL)
