Same model may have multiple batches, images only for reference.

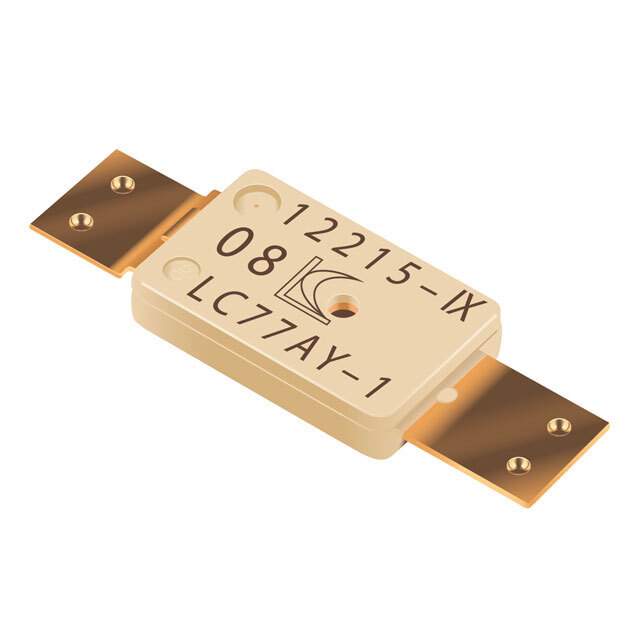

LC77AY-1 Real Image
Same model may have multiple batches, images only for reference.

LC77AY-1

Part No LC77AY-1
Manufacturer Bourns Inc.
Catalog Temperature Sensors - Thermostats - Mechanical
Description TEMP REGULATOR NC 77 DEG 2-SMD
Datasheet
LC77AY-1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Bourns Inc.
Status Active
Circuit SPST-NC
Switching Temperature 170°F (77°C)
Reset Temperature 104°F (40°C)
Current Rating - DC 12A (9V)
Tolerance ±9°F (±5°C)
Switching Cycles 6K
Termination Style Solder Pad
Mounting Weld Tab
Dimension 2-SMD
Win Source Part Number 1051848-LC77AY-1
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian LC77AY-1 CAD Model

Description

The Bourns Inc. LC77AY-1 is an SPST-NC circuit sensor with a switching temperature of 170°F (77°C) and a reset temperature of 104°F (40°C).

  • Circuit Type: SPST-NC
  • Switching Temperature: 170°F (77°C)
  • Reset Temperature: 104°F (40°C)
  • Tolerance: ±9°F (±5°C)
  • Switching Cycle: 6K
  • Maximum Current Rating: 12A (9V)
  • Mounting Type: Weld Tab
  • Category: Sensors, Transducers
  • Dimension: 2-SMD
  • Supply and Demand Status: Balance
  • Lifecycle Status: Active
  • RoHS Compliant: Yes
