Same model may have multiple batches, images only for reference.

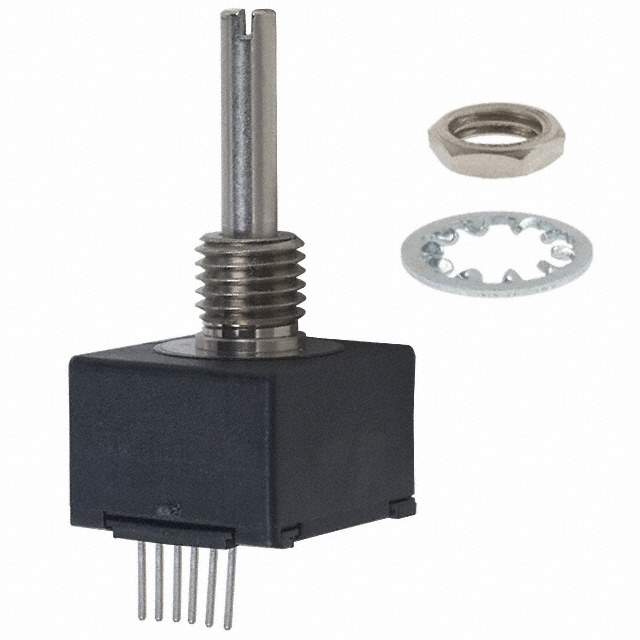

EM14C0D-E28-L064N Real Image
Same model may have multiple batches, images only for reference.

EM14C0D-E28-L064N

Part No EM14C0D-E28-L064N
Manufacturer Bourns Inc.
Catalog Encoders
Description ROTARY ENCODER OPTICAL 64PPR  /  Rotary Encoder Optical 64 Quadrature (Incremental) Vertical
Datasheet
EM14C0D-E28-L064N Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number 1032929-EM14C0D-E28-L064N
Standard Package 25
Other Names EM14C0DE28L064N,EM14C0D-E28-L064N-ND,118-EM14C0D-E28-L064N
HTSUS 8543.70.4500
ECCN EAR99
REACH Status REACH Affected
MSL Level Not Applicable
Base Product Number EM14C0D
Rotational Life (Cycles Min) 1M
Termination Style PC Pin
Orientation Vertical
Mounting Type Panel, PCB Through Hole
Built in Switch No
Detent No
Actuator Type 1/8" Dia Slotted End
Voltage - Supply 5V
Pulses per Revolution 64
Output Type Quadrature (Incremental)
Encoder Type Optical
Package Tray
Series EM14
Mfr Bourns Inc.
Category Sensors, Transducers>Encoders
Ultra Librarian 3D Model Ultra Librarian EM14C0D-E28-L064N CAD Model

Description

The EM14 series from Bourns Inc. is an encoder type optical sensor that has a 1/8" dia slotted end actuator type and a quadrature (incremental) output type.

  • Actuator Type: 1/8" dia slotted end
  • Output Type: Quadrature (incremental)
  • Rotational Life: 1M cycles min
  • Voltage Supply: 5V
  • Detent: No
  • Pulses Per Revolution: 64
  • Termination Style: PC Pin
  • Mounting Type: Panel, PCB Through Hole
  • Package: Tray
  • Standard Package: 25
  • REACH: Affected
  • HTSUS: 8543.70.4500
