Same model may have multiple batches, images only for reference.

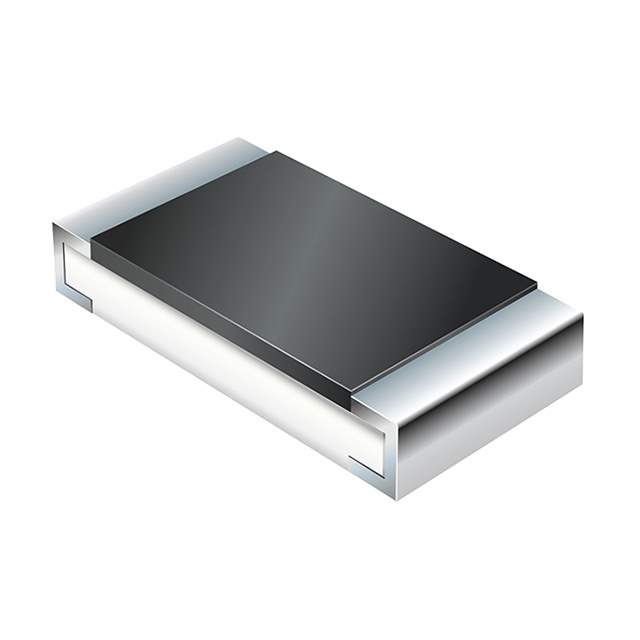

CRS1206-JW-220ELF Real Image
Same model may have multiple batches, images only for reference.

CRS1206-JW-220ELF

Part No CRS1206-JW-220ELF
Manufacturer Bourns Inc.
Catalog Chip Resistor - Surface Mount
Description RESHIGHSURGE 1206 22R 5% 500MW T / 22 Ohms ±5% 0.5W, 1/2W Chip Resistor 1206 (3216 Metric) High Voltage, Pulse Withstanding Thick Film
Datasheet
CRS1206-JW-220ELF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Mfr Bourns Inc.
Series CRS
Package Tape & Reel (TR)
Resistance 22 Ohms
Tolerance ±5%
Power (Watts) 0.5W, 1/2W
Composition Thick Film
Features High Voltage, Pulse Withstanding
Temperature Coefficient ±200ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Package / Case 1206 (3216 Metric)
Supplier Device Package 1206
Dimension 0.122" L x 0.063" W (3.10mm x 1.60mm)
Height - Seated (Max) 0.026" (0.65mm)
Number of Terminations 2
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8533.21.0030
Other Names 118-CRS1206-JW-220ELFTR
Standard Package 5,000
Win Source Part Number 1089619-CRS1206-JW-220ELF
Ultra Librarian 3D Model Ultra Librarian CRS1206-JW-220ELF CAD Model

Description

The CRS series by Bourns Inc. is a chip resistor - surface mount designed for resistors.

  • Type: Thick film
  • Tolerance: ±5%
  • Temperature Coefficient: ±200ppm/°C
  • Package/Case: 1206 (3216 Metric)
  • Power (watts): 0.5W, 1/2W
  • Resistance: 22 Ohms
  • Number of Terminations: 2
  • Package: Tape and reel
  • Standard Package: 5,000
  • Mounting: SMD (SMT)
  • Dimension: 0.122" L x 0.063" W (3.10mm x 1.60mm)
  • Operating Temperature: -55°C ~ 155°C
  • MSL Level: 1 (unlimited)
  • HTSUS: 8533.21.0030
