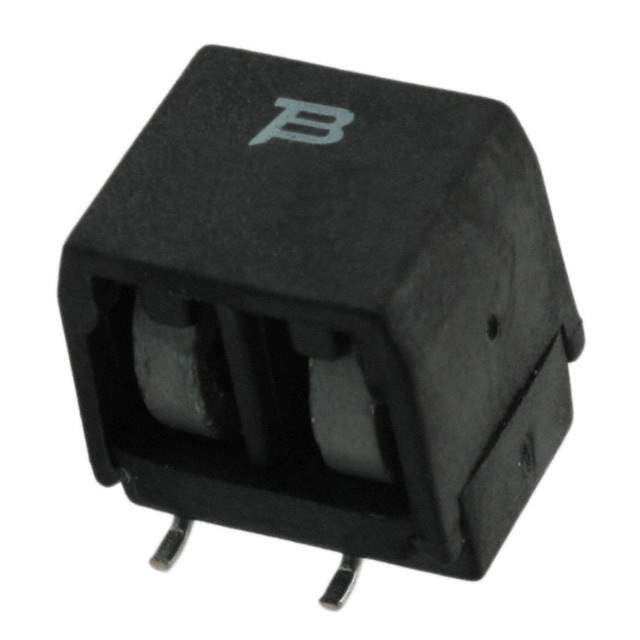

CMF-SDP50A-2 Real Image
Same model may have multiple batches, images only for reference.

CMF-SDP50A-2

Part No CMF-SDP50A-2
Manufacturer Bourns Inc.
Catalog PTC Resettable Fuses
Description PTC RESET FUSE 230V 90MA 4SMD / SLIC Protection
Datasheet
CMF-SDP50A-2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Bourns Inc.
Packaging Reel
Type Ceramic
Voltage - Max 230V (600V Int)
Current - Max 2.5A
Current - Hold (Ih) (Maximum) 90mA
Current - Trip (It) 190mA
Time to Trip 200ms
Resistance - 25°C (Typ) 50 Ohms
Temperature Range - Operating -40°C ~ 125°C
Mounting Style SMD
Manufacturer Package 4-SMD Cube
Dimension 0.344" L x 0.283" W (8.75mm x 7.20mm)
Thickness (Maximum) 0.402" (10.20mm)
Part Number Series CMF-SDP
Manufacturer Pack Quantity 400
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 805011-CMF-SDP50A-2
Ultra Librarian 3D Model Ultra Librarian CMF-SDP50A-2 CAD Model

Description

The Bourns Inc. 805011-CMF-SDP50A-2 ceramic SMD fuse is a reliable and efficient circuit protection component. It is manufactured by Bourns Inc.

  • Maximum Voltage: 230V (600V Int)
  • Maximum Current: 2.5A
  • Current Trip: 190mA
  • Time to Trip: 200ms
  • Operating Temperature: -40°C to 125°C
  • Package Dimension: 0.344" L x 0.283" W (8.75mm x 7.20mm)
  • Package Thickness: 0.402" (10.20mm)
  • Resistance @ 25°C: 50 Ohms
  • Current Hold (Ih) (Maximum): 90mA
  • Popularity: Medium
  • Supply and Demand Status: Balanced
  • Manufacturer Pack Quantity: 400
  • MSL Level: 1 (Unlimited)
