Same model may have multiple batches, images only for reference.

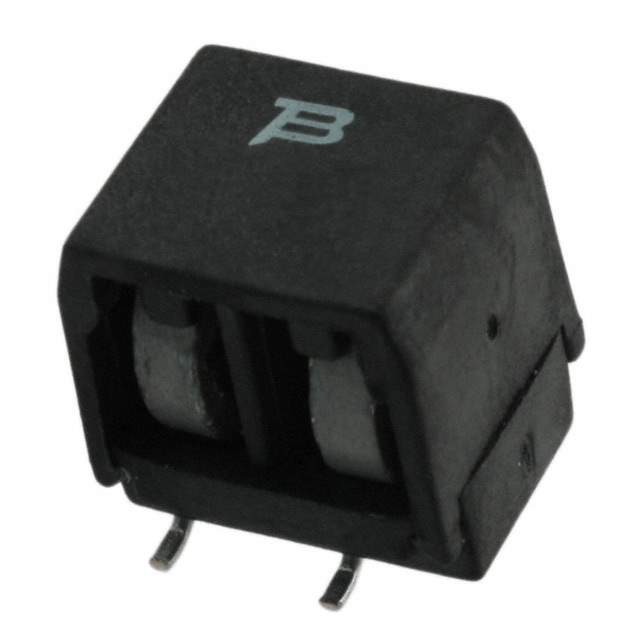

CMF-SDP35A-2 Real Image
Same model may have multiple batches, images only for reference.

CMF-SDP35A-2

Part No CMF-SDP35A-2
Manufacturer Bourns Inc.
Catalog PTC Resettable Fuses
Description PTC RESET FUSE 230V 110MA 4SMD / Ceramic PTC Resettable Fuse 230V (600V Int) 110 mA Ih Surface Mount 4-SMD Cube
Datasheet
CMF-SDP35A-2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>PTC Resettable Fuses
Mfr Bourns Inc.
Series CMF-SDP
Package Tape & Reel
Type Ceramic
Voltage - Max 230V (600V Int)
Current - Max 2.5 A
Current - Hold (Ih) (Max) 110 mA
Current - Trip (It) 230 mA
Time to Trip 200 ms
Resistance - 25°C (Typ) 35 Ohms
Temperature Range - Operating -40°C ~ 125°C
Mounting SMD (SMT)
Package / Case 4-SMD Cube
Dimension 0.344" L x 0.283" W (8.75mm x 7.20mm)
Thickness (Max) 0.402" (10.20mm)
Base Product Number CMF-SD
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8533.40.8070
Other Names CMF-SDP35A-2-ND,CMFSDP35A2,CMF-SDP35A-2CT,CMF-SDP35A-2TR,CMF-SDP35A-2DKR
Standard Package 400
Win Source Part Number 1083540-CMF-SDP35A-2
Ultra Librarian 3D Model Ultra Librarian CMF-SDP35A-2 CAD Model

Description

The CMF-SDP35A-2 is a ceramic PTC resettable fuse from Bourns Inc.

  • Design: Designed for circuit protection
  • Series: CMF-SDP
  • Packaging: Tape and reel
  • Standard Package: 400
  • Maximum Voltage: 230V (600V Int)
  • Maximum Current: 2.5 A
  • Current Hold (Ih) (Max): 110 mA
  • Current Trip (It): 230 mA
  • Time to Trip: 200 ms
  • Package/Case: 4-SMD Cube
  • Dimension: 0.344" L x 0.283" W (8.75mm x 7.20mm)
  • Temperature Range for Operating: -40°C ~ 125°C
  • Resistance @ 25°C (Typ): 35 Ohms
  • MSL Level: 1 (Unlimited)
  • REACH Status: REACH Affected
  • HTSUS: 8533.40.8070
