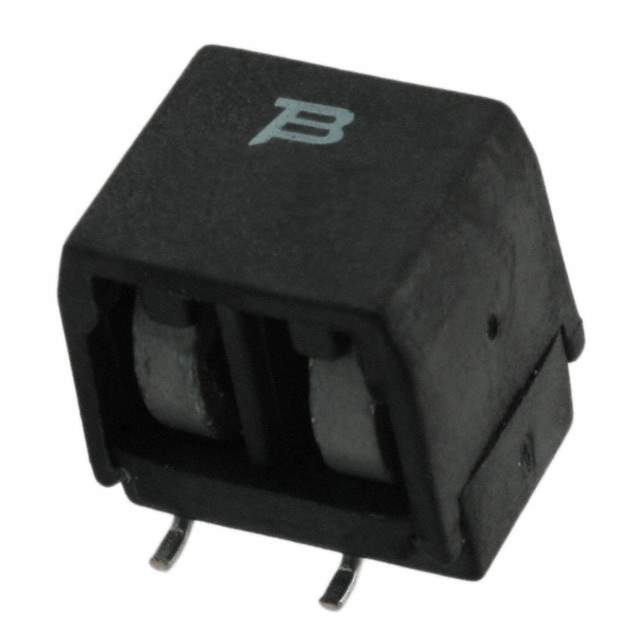

CMF-SDP10-2 Real Image
Same model may have multiple batches, images only for reference.

CMF-SDP10-2

Part No CMF-SDP10-2
Manufacturer Bourns Inc.
Catalog PTC Resettable Fuses
Description PTC RESET FUSE 230V 180MA 4SMD / Ceramic PTC Resettable Fuse 230V (250V Int) 180 mA Ih Surface Mount 4-SMD Cube
Datasheet
CMF-SDP10-2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>PTC Resettable Fuses
Mfr Bourns Inc.
Series CMF-SDP
Package Tape & Reel
Type Ceramic
Voltage - Max 230V (250V Int)
Current - Max 1 A
Current - Hold (Ih) (Max) 180 mA
Current - Trip (It) 360 mA
Time to Trip 3.8 s
Resistance - 25°C (Typ) 10 Ohms
Temperature Range - Operating -40°C ~ 125°C
Mounting SMD (SMT)
Package / Case 4-SMD Cube
Dimension 0.433" L x 0.354" W (11.00mm x 9.00mm)
Thickness (Max) 0.453" (11.50mm)
Base Product Number CMF-SD
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8533.40.8070
Other Names CMF-SDP10-2-1,CMF-SDP10-2-2,CMF-SDP10-2-ND,CMFSDP102,CMF-SDP10-2-6
Standard Package 350
Win Source Part Number 1092130-CMF-SDP10-2
Ultra Librarian 3D Model Ultra Librarian CMF-SDP10-2 CAD Model

Description

The CMF-SDP10-2 from Bourns Inc. is a PTC resettable fuse.

  • Fuse Type: Ceramic
  • Package/Case: 4-SMD cube
  • Maximum Voltage: 230V (250V Int)
  • Maximum Current: 1 A
  • Current Hold (Ih) (Max): 180 mA
  • Current Trip (It): 360 mA
  • Time to Trip: 3.8 s
  • Operating Temperature Range: -40°C ~ 125°C
  • Thickness (Max): 0.453" (11.50mm)
  • Packaging: Tape & Reel
  • Mounting Type: SMD (SMT)
  • Lead Spacing: Not Applicable
  • Resistance - 25°C (Typ): 10 Ohms
