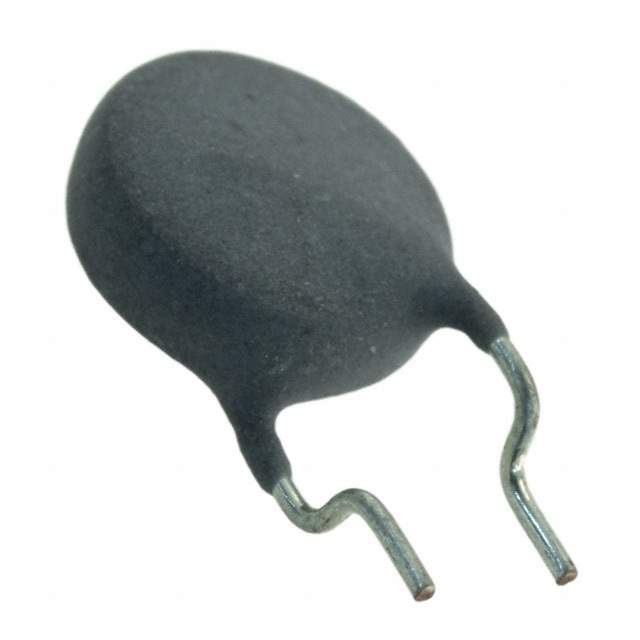

CMF-RL50-10-0 Real Image
Same model may have multiple batches, images only for reference.

CMF-RL50-10-0

Part No CMF-RL50-10-0
Manufacturer Bourns Inc.
Catalog PTC Resettable Fuses
Description PTC RESET FUSE 220V 65MA RADIAL / Ceramic PTC Resettable Fuse 220V (600V Int) 65 mA Ih Through Hole Radial, Disc
Datasheet
CMF-RL50-10-0 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>PTC Resettable Fuses
Mfr Bourns Inc.
Series CMF-RL
Package Bulk
Type Ceramic
Voltage - Max 220V (600V Int)
Current - Max 3 A
Current - Hold (Ih) (Max) 65 mA
Current - Trip (It) 150 mA
Time to Trip 150 ms
Resistance - 25°C (Typ) 50 Ohms
Temperature Range - Operating -40°C ~ 125°C
Mounting Type Through Hole
Package / Case Radial, Disc
Dimension 0.386" L x 0.197" W (9.80mm x 5.00mm)
Height - Seated (Max) 0.532" (13.50mm)
Lead Spacing 0.200" (5.08mm)
Approval Agency UR
Base Product Number CMF-RL
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.40.8070
Standard Package 300
Win Source Part Number 1088929-CMF-RL50-10-0
Ultra Librarian 3D Model Ultra Librarian CMF-RL50-10-0 CAD Model

Description

The Bourns Inc. CMF-RL50-10-0 is a PTC resettable fuse that belongs to the CMF-RL series.

  • Component Type: Ceramic
  • Height - Seated (Max): 0.532" (13.50mm)
  • Voltage - Max: 220V (600V Int)
  • Current - Max: 3 A
  • Current - Hold (Ih) (Max): 65 mA
  • Current - Trip (It): 150 mA
  • Time to Trip: 150 ms
  • Mounting Type: Through Hole
