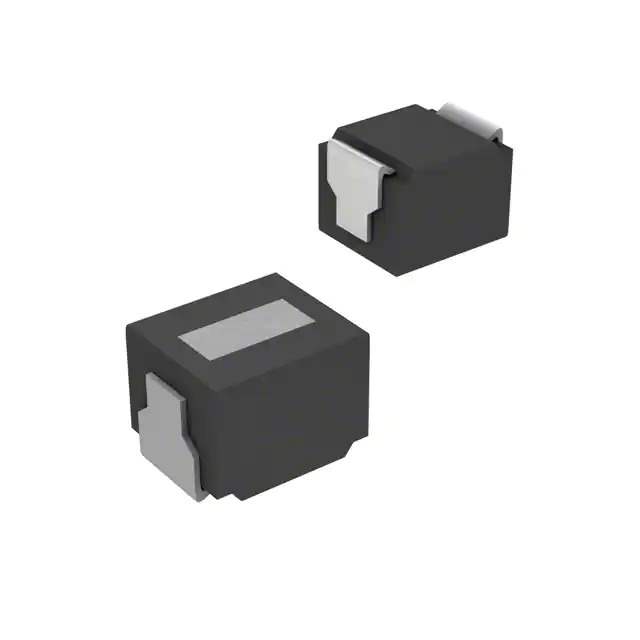

CM322522-180KL Real Image
Same model may have multiple batches, images only for reference.

CM322522-180KL

Part No CM322522-180KL
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Description FIXED IND 18UH 110MA 3.3 OHM SMD
Datasheet
CM322522-180KL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Bourns Inc.
Series CM322522
Package Tape & Reel
Product Status Active
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 18 µH
Tolerance ±10%
Current Rating (Amps) 110 mA
Shielding Unshielded
DC Resistance (DCR) 3.3Ohm Max
Q @ Freq 30 @ 2.52MHz
Frequency - Self Resonant 27MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 2.52 MHz
Mounting Type Surface Mount
Package / Case Nonstandard
Size / Dimension 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max) 0.087" (2.20mm)
Base Product Number CM322522
Standard Package 2,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
California Prop 65 Warning Information
Win Source Part Number 579430-CM322522-180KL
Ultra Librarian 3D Model Ultra Librarian CM322522-180KL CAD Model

Description

The CM322522 series is a fixed inductor with a drum core and wirewound construction. The base product number is CM322522 and it is currently active. Manufactured by Bourns Inc.

  • Type: Fixed
  • Material - Core: Drum Core
  • Inductance: 4.7 µH
  • Tolerance: ±10%
  • Q @ Freq: 30 @ 2.52MHz
  • Self Resonant Frequency: 27MHz
  • DC Resistance (DCR): 3.3 Ohm Max
  • Current Rating: 110mA
  • Shielding: Unshielded
  • Mounting Type: Surface Mount
  • Package / Case: Nonstandard
  • Size / Dimension: 0.126" L x 0.098" W (3.20mm x 2.50mm)
  • Height - Seated (Max): 0.087" (2.20mm)
  • REACH: Unaffected
