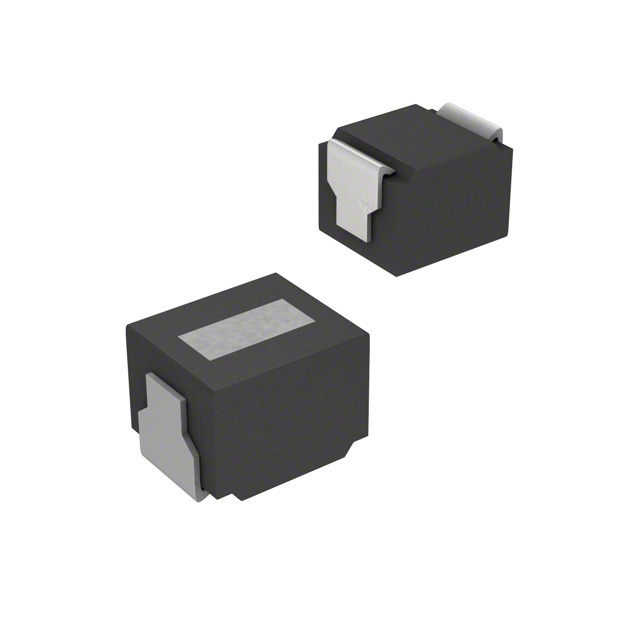

Same model may have multiple batches, images only for reference.
CM322522-120KL Bourns Inc. – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

CM322522-120KL

Part No CM322522-120KL
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Description FIXED IND 12UH 125MA 2.5 OHM SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, ChokesFixed Inductors
Mfr Bourns Inc.
Series CM322522
Part Status Active
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 12 μH
Tolerance ±10%
Current Rating (Amps) 125 mA
Shielding Unshielded
DC Resistance (DCR) 2.5Ohm Max
Q @ Freq 30 @ 2.52MHz
Frequency - Self Resonant 33MHz
Operating Temperature -40°C ~ 125°C
Inductance Frequency - Test 2.52 MHz
Mounting Type Surface Mount
Package / Case Nonstandard
Size / Dimension 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max) 0.087" (2.20mm)
Base Product Number CM322522
Ultra Librarian 3D Model Ultra Librarian CM322522-120KL CAD Model
