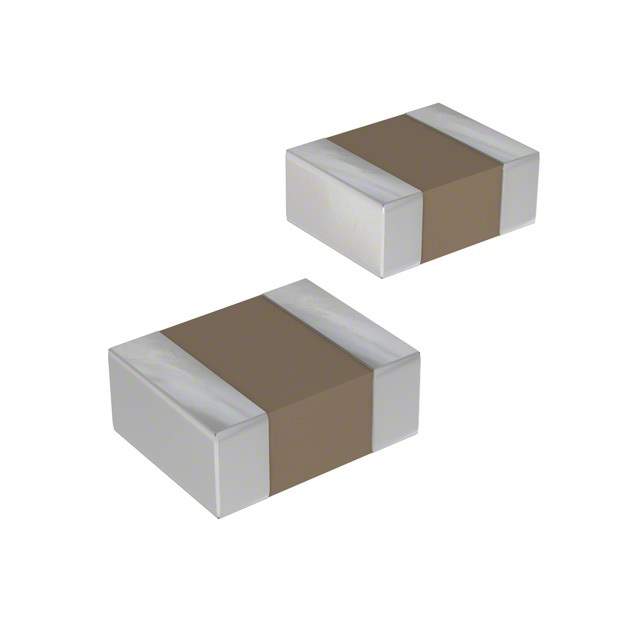

CF322513-2R2K Real Image
Same model may have multiple batches, images only for reference.

CF322513-2R2K

Part No CF322513-2R2K
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Description FIXED IND 2.2UH 320MA 1 OHM SMD / 2.2 µH Shielded Multilayer Inductor 320 mA 1Ohm Max 1210 (3225 Metric)
Datasheet
CF322513-2R2K Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series CF322513
Package Tape & Reel (TR)
Product Status Obsolete
Type Multilayer
Material - Core Ferrite
Inductance 2.2 µH
Tolerance ±10%
Current Rating (Amps) 320 mA
Shielding Shielded
DC Resistance (DCR) 1Ohm Max
Q @ Freq 30 @ 7.96MHz
Frequency - Self Resonant 75MHz
Temperature Range - Operating -55°C ~ 125°C
Inductance Frequency - Test 7.96 MHz
Mounting SMD (SMT)
Package / Case 1210 (3225 Metric)
Supplier Device Package 1210
Dimension 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max) 0.059" (1.50mm)
Base Product Number CF322513
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Standard Package 2,500
Win Source Part Number 1051302-CF322513-2R2K
Ultra Librarian 3D Model Ultra Librarian CF322513-2R2K CAD Model

Description

The 1051302-CF322513-2R2K is a fixed inductor from Bourns Inc. Bourns Inc. is the manufacturer.

  • Inductance: 2.2 µH
  • Tolerance: ±10%
  • Shielding: Shielded
  • Package: Tape and reel
  • Standard Package: 2,500
  • Mounting: SMD (SMT)
  • Application: Inductors, Coils, Chokes, high-frequency filtering, such as power supplies and DC-DC converters
  • DC Resistance (DCR): 1Ohm Max
  • Q @ Freq: 30 @ 7.96MHz
  • Temperature Range: -55°C ~ 125°C
  • Dimension: 0.126" L x 0.098" W (3.20mm x 2.50mm)
  • REACH: Unaffected
