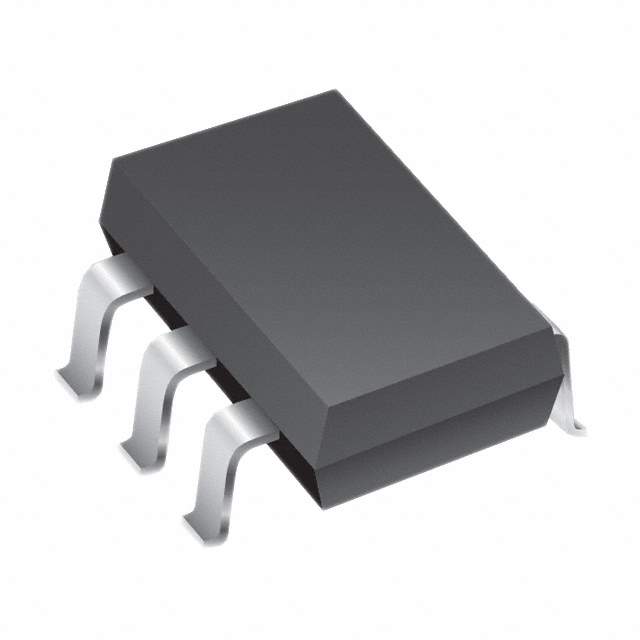

CDSOT563-T05C Real Image
Same model may have multiple batches, images only for reference.

CDSOT563-T05C

Part No CDSOT563-T05C
Manufacturer Bourns Inc.
Catalog TVS - Diodes
Description TVS DIODE 5VWM 12VC SMD
Datasheet
CDSOT563-T05C Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Bourns Inc.
Packaging Reel - TR
Type Zener
Unidirectional Channels 5
Bidirectional Channels 4
STAND-OFF Voltage (Vwm) 5V
Minimum Breakdown Voltage 6V
Max Clamping Voltage 12V
Peak Pulse Current(Ippm) 9A (8/20μs)
Power Dissipation - Pd 100W
Applications General Purpose
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting SMD (SMT)
Case / Package SOT-563
Win Source Part Number 1029026-CDSOT563-T05C
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian CDSOT563-T05C CAD Model

Description

The Bourns Inc. 1029026-CDSOT563-T05C is a zener type circuit protection electronic component that can be used in general purpose applications.

  • Packaging: Reel-TR
  • Mounting Type: SMD (SMT)
  • Unidirectional Channels: Five
  • Bidirectional Channels: Four
  • Category: Circuit protection
  • Temperature Range: -55°C to 150°C (TJ)
  • Supply and Demand Status: Sufficient
