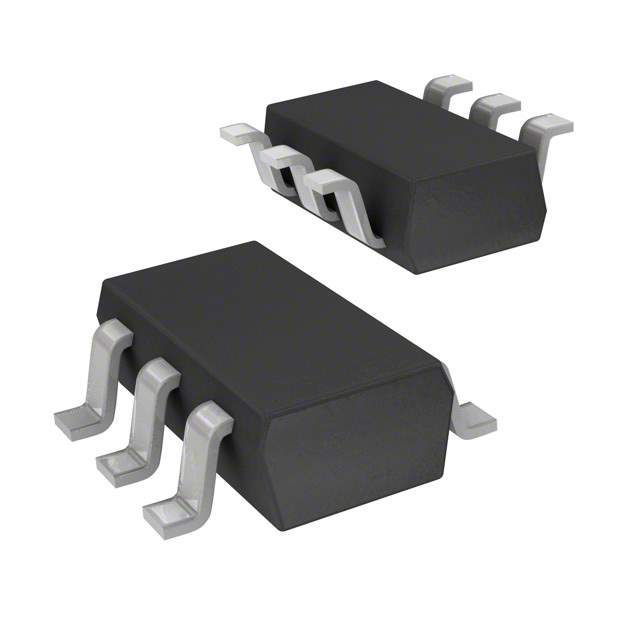

CDSOT236-T12LC Real Image
Same model may have multiple batches, images only for reference.

CDSOT236-T12LC

Part No CDSOT236-T12LC
Manufacturer Bourns Inc.
Catalog TVS - Diodes
Description TVS DIODE 12VWM 19VC SMD
Datasheet
CDSOT236-T12LC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Bourns Inc.
Packaging Reel - TR
Status Active
Type Zener
Bidirectional Channels 1
STAND-OFF Voltage (Vwm) 12V
Minimum Breakdown Voltage 13.3V
Max Clamping Voltage 19V
Peak Pulse Current(Ippm) 11A (8/20μs)
Power Dissipation - Pd 350W
Applications General Purpose
Capacitance @ Frequency 3pF @ 1MHz
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting SMD (SMT)
Case / Package SOT-23-6
Win Source Part Number 092446-CDSOT236-T12LC
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian CDSOT236-T12LC CAD Model

Description

Product Overview

The CDSOT236-T12LC is an advanced ESD protection device for line and high-speed data applications. It brings a small form factor and high reliability for circuit protection.

Features and Benefits

  • Superior clamping performance to handle high energy transients.
  • Low capacitance diodes to support faster data rates.
  • SOT-23 package for easy PCB layout inclusion.
  • Lead-free and RoHS compliant for ecological sustainability.

Applications

  • Consumer electronics
  • Medical electronic devices
  • Aerospace equipment
  • Home automation systems
