Same model may have multiple batches, images only for reference.

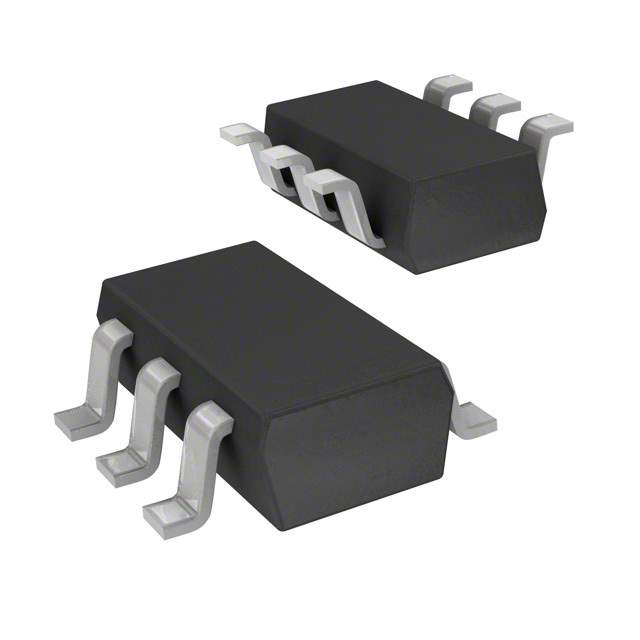

CDSOT236-0504LC Real Image
Same model may have multiple batches, images only for reference.

CDSOT236-0504LC

Part No CDSOT236-0504LC
Manufacturer Bourns Inc.
Catalog TVS - Diodes
Description TVS DIODE 5VWM 8.1VC SOT23-6
Datasheet
CDSOT236-0504LC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Bourns Inc.
Packaging Reel - TR
Status Active
Type Steering (Rail to Rail)
Unidirectional Channels 4
STAND-OFF Voltage (Vwm) 5V
Minimum Breakdown Voltage 6V
Max Clamping Voltage 8.1V (Typ)
Peak Pulse Current(Ippm) 4.7A (8/20μs)
Power Line Protection Yes
Applications HDMI, USB OTG
Temperature Range - Operating -55°C to 85°C (TA)
Mounting SMD (SMT)
Case / Package SOT-23-6
Win Source Part Number 079945-CDSOT236-0504LC
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian CDSOT236-0504LC CAD Model

Description

Product Overview

The CDSOT236-0504LC is designed for line protection applications where low capacitance is necessary. This device is suitable for sensitive equipment needing dependable ESD safeguards.

Features and Benefits

  • Optimized for high-speed data lines.
  • Provides effective transient voltage suppression.
  • Offers low capacitance to maintain data integrity.
  • Environmentally safe with RoHS compliance.

Applications

  • High-speed data ports
  • Security systems
  • Networking devices
  • Industrial control systems
