Same model may have multiple batches, images only for reference.

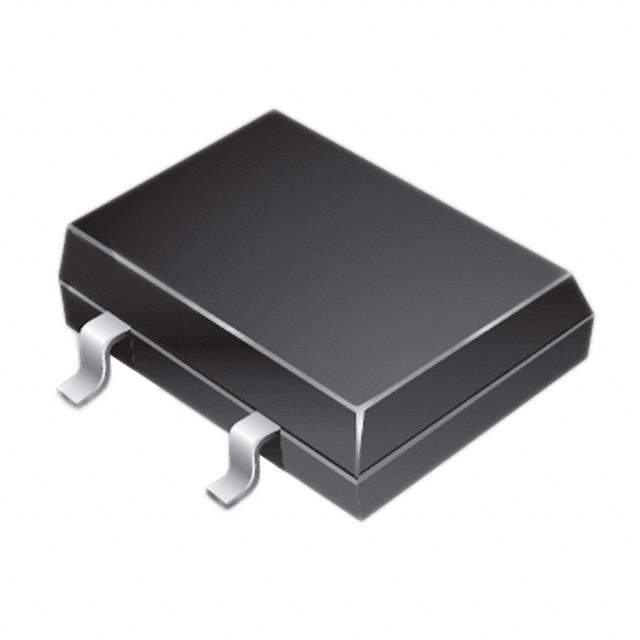

CDNBS04-B08600 Real Image
Same model may have multiple batches, images only for reference.

CDNBS04-B08600

Part No CDNBS04-B08600
Manufacturer Bourns Inc.
Catalog Bridge Rectifiers
Description DIODE BRIDGE RECTIFIER
Datasheet
CDNBS04-B08600 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Bourns Inc.
Packaging Reel - TR
Status Active
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Max) 600V
Current - Average Rectified (Io) 800mA
Voltage - Forward (Vf) (Max) @ If 1.15V @ 400mA
Current - Reverse Leakage @ Vr 5μA @ 600V
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting SMD (SMT)
Case / Package NBS04
Win Source Part Number 1028837-CDNBS04-B08600
Popularity Medium
Supply and Demand Status Sufficient
Application Field Used in Power Management, Consumer Electronics, Industrial, Communications & Networking
Ultra Librarian 3D Model Ultra Librarian CDNBS04-B08600 CAD Model

Description

The 1028837-CDNBS04-B08600 is a surface-mount standard diode used in power management, consumer electronics, industrial, and communications & networking applications by Bourns Inc.

  • Diode Type: Single-Phase
  • Average Rectified Current: 800mA
  • Voltage-Forward (Vf): 1.15V @ 400mA
  • Current-Reverse Leakage at Vr: 5μA @ 600V
  • Voltage-Peak Reverse: 600V
  • Package: NBS04
  • Popularity: Medium
