Same model may have multiple batches, images only for reference.

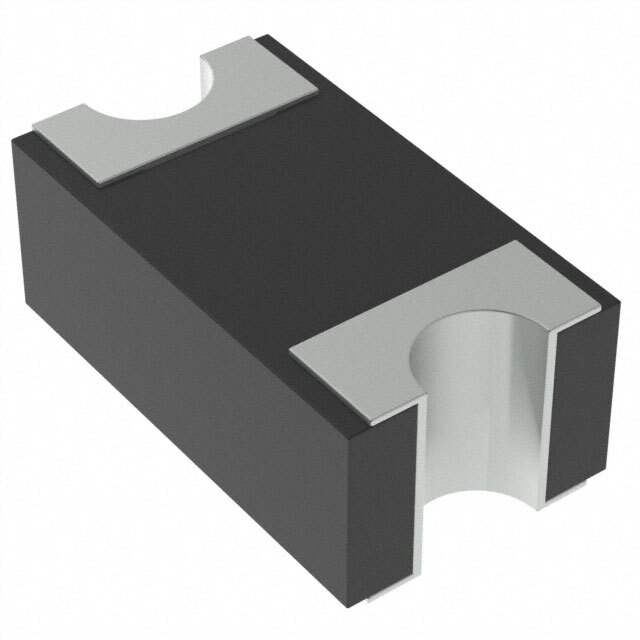

CD0603-B0240R Real Image
Same model may have multiple batches, images only for reference.

CD0603-B0240R

Part No CD0603-B0240R
Manufacturer Bourns Inc.
Catalog Diodes, Rectifiers - Single
Description DIODE SCHOTTKY 40V 200MA 0603 / Diode 40 V 200mA Surface Mount 0603 (1608 Metric)
Datasheet
CD0603-B0240R Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Rectifiers - Single Diodes
Mfr Bourns Inc.
Package Tape & Reel
Product Status Active
Technology Schottky
Voltage - DC Reverse (Vr) (Max) 40 V
Current - Average Rectified (Io) 200mA
Voltage - Forward (Vf) (Max) @ If 550 mV @ 200 mA
Speed Small Signal =< 200mA (Io), Any Speed
Current - Reverse Leakage @ Vr 1 µA @ 10 V
Capacitance @ Vr, F 35pF @ 4V, 1MHz
Mounting Type Surface Mount
Package / Case 0603 (1608 Metric)
Supplier Device Package 0603 (1608 Metric)
Operating Temperature - Junction -40°C ~ 125°C
Base Product Number CD0603
Standard Package 3,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0070
California Prop 65 Warning Information
Win Source Part Number 850120-CD0603-B0240R
Ultra Librarian 3D Model Ultra Librarian CD0603-B0240R CAD Model

Description

The 850120-CD0603-B0240R is a schottky diode from Bourns Inc.

  • Manufacturer: Bourns Inc.
  • Diode Type: Schottky
  • Voltage - Reverse DC (Vr) (Max): 40V
  • Current - Average Rectified (Io): 200mA
  • Voltage - Forward (Vf) (Max) @ If: 550mV @ 200mA
  • Current - Reverse Leakage @ Vr: 1µA @ 10V
  • Capacitance @ Vr, F: 35pF @ 4V, 1MHz
  • Mounting Type: Surface Mount
  • Package / Case: 0603 (1608 Metric)
  • Product Status: Active
  • California Prop 65: Yes
