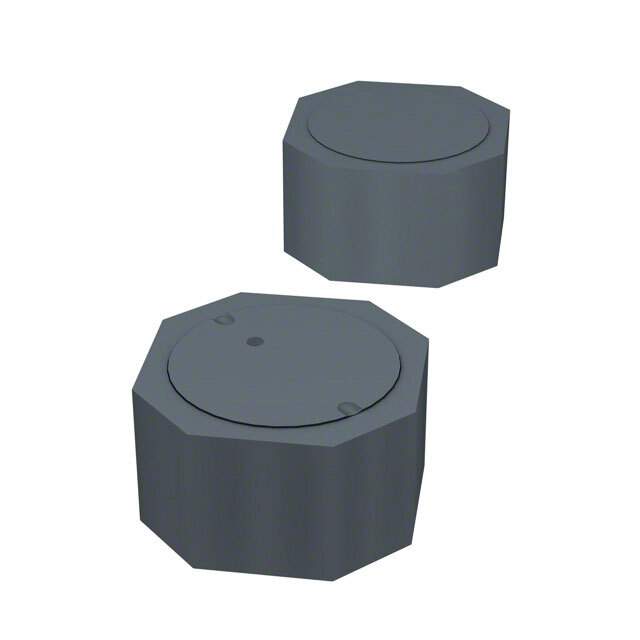

Same model may have multiple batches, images only for reference.

SRU5028-220Y

Name: SRU5028-220Y
Brand: Bourns Inc.
SKU: 1273047
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	SRU5028-220Y
Manufacturer	Bourns Inc.
Catalog	Fixed Inductors
Datasheet	SRU5028-220Y Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Mfr	Bourns Inc.
Series	SRU5028
Package	Tape & Reel
Type	Drum Core, Wirewound
Material - Core	Ferrite
Inductance	22 µH
Tolerance	±30%
Current Rating (Amps)	950 mA
Current - Saturation (Isat)	850mA
Shielding	Shielded
DC Resistance (DCR)	162mOhm
Q @ Freq	15 @ 2.52MHz
Frequency - Self Resonant	18MHz
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	100 kHz
Mounting	SMD (SMT)
Package / Case	Nonstandard
Dimension	0.205" L x 0.205" W (5.20mm x 5.20mm)
Height - Seated (Max)	0.118" (3.00mm)
Base Product Number	SRU5028
Other Names	SRU5028-220Y,SRU5028-220YTR,SRU5028-220YDKR,SRU5028-220YCT,SRU5028220Y
Standard Package	600
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.4000
Win Source Part Number	1273047-SRU5028-220Y
Ultra Librarian 3D Model	Ultra Librarian SRU5028-220Y CAD Model

Alternative Products

Description

The SRU5028 series from Bourns Inc. is a shielded drum core wirewound inductor.

Core Type: Ferrite
Inductance: 22 µH
Tolerance: ±30%
DC Resistance (DCR): 162mOhm
Current Rating: 950 mA
Q @ Freq: 15 @ 2.52MHz
Frequency Self-Resonant: 18MHz
Package: Nonstandard
Packaging: Tape & Reel
Height: 0.118" (3.00mm)
Dimension: 0.205" L x 0.205" W (5.20mm x 5.20mm)
Temperature Range: -40°C ~ 125°C
Mounting: Surface mount device (SMD)
RoHS: Compliant
