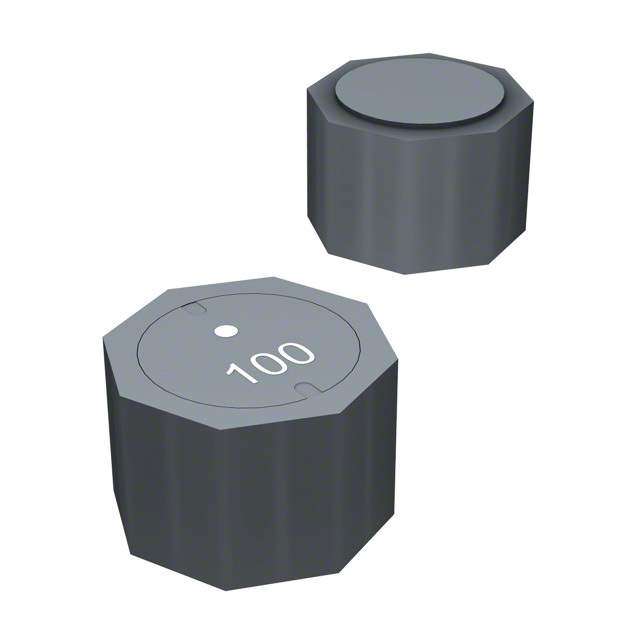

Same model may have multiple batches, images only for reference.

SRU1063-150Y

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	SRU1063-150Y
Manufacturer	Bourns Inc.
Catalog	Fixed Inductors
Datasheet	SRU1063-150Y Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Mfr	Bourns Inc.
Series	SRU1063
Package	Tape & Reel
Type	Drum Core, Wirewound
Material - Core	Ferrite
Inductance	15 µH
Tolerance	±30%
Current Rating (Amps)	3.2 A
Current - Saturation (Isat)	3.4A
Shielding	Shielded
DC Resistance (DCR)	42mOhm Max
Q @ Freq	12 @ 2.52MHz
Frequency - Self Resonant	14MHz
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	100 kHz
Mounting	SMD (SMT)
Package / Case	Nonstandard
Dimension	0.394" L x 0.394" W (10.00mm x 10.00mm)
Height - Seated (Max)	0.268" (6.80mm)
Base Product Number	SRU1063
Other Names	SRU1063-150YCT,SRU1063-150YDKR,SRU1063150Y,SRU1063-150YTR,SRU1063-150Y
Standard Package	500
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.4000
Win Source Part Number	1273120-SRU1063-150Y
Ultra Librarian 3D Model	Ultra Librarian SRU1063-150Y CAD Model

Alternative Products

Description

The SRU1063-150Y inductor is a drum core wirewound type with a shielding feature.

Inductance: 15µH
Tolerance: ±30%
DC Resistance: 42mOhm Max
Current Rating: 3.2A
Q @ Freq: 12 @ 2.52MHz
Frequency of Self-Resonant: 14MHz
Core Material: Ferrite
Temperature Range: -40°C to 125°C
Dimension: 0.394" L x 0.394" W
Height: 0.268" (6.80mm)
Package: Non-standard
Application: Ideal for use in electronic devices that require inductors, coils, or chokes
