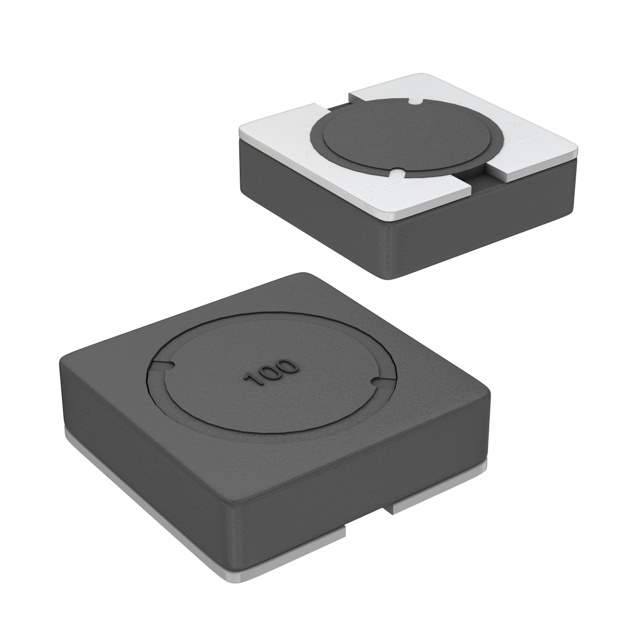

Same model may have multiple batches, images only for reference.

SRR5018-151Y

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	SRR5018-151Y
Manufacturer	Bourns Inc.
Catalog	Fixed Inductors
Datasheet	SRR5018-151Y Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Mfr	Bourns Inc.
Series	SRR5018
Package	Tape & Reel (TR)
Type	Drum Core, Wirewound
Material - Core	Ferrite
Inductance	150 µH
Tolerance	±30%
Current Rating (Amps)	280 mA
Current - Saturation (Isat)	350mA
Shielding	Shielded
DC Resistance (DCR)	1.65Ohm Max
Q @ Freq	11.8 @ 796kHz
Frequency - Self Resonant	11MHz
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	100 kHz
Mounting	SMD (SMT)
Package / Case	Nonstandard
Dimension	0.228" L x 0.228" W (5.80mm x 5.80mm)
Height - Seated (Max)	0.079" (2.00mm)
Base Product Number	SRR5018
Standard Package	500
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.4000
Win Source Part Number	1273258-SRR5018-151Y
Ultra Librarian 3D Model	Ultra Librarian SRR5018-151Y CAD Model

Alternative Products

Description

The SRR5018 series from Bourns Inc. is a drum core, wirewound inductor that comes in a tape & reel package.

Shielded: Yes
Inductance: 150 µH
Tolerance: ±30%
Core Material: Ferrite
Height Seated: 0.079 inches (2.00mm)
DC Resistance (DCR): 1.65Ohm Max
Q @ Freq: 11.8 @ 796kHz
Frequency Self-Resonant: 11MHz
Package/Case: Nonstandard
Current Rating: 280mA
Inductance Frequency Test: 100 kHz
Operating Temperature: -40°C to 125°C
Dimension: 0.228 inches L x 0.228 inches W (5.80mm x 5.80mm)
