Same model may have multiple batches, images only for reference.

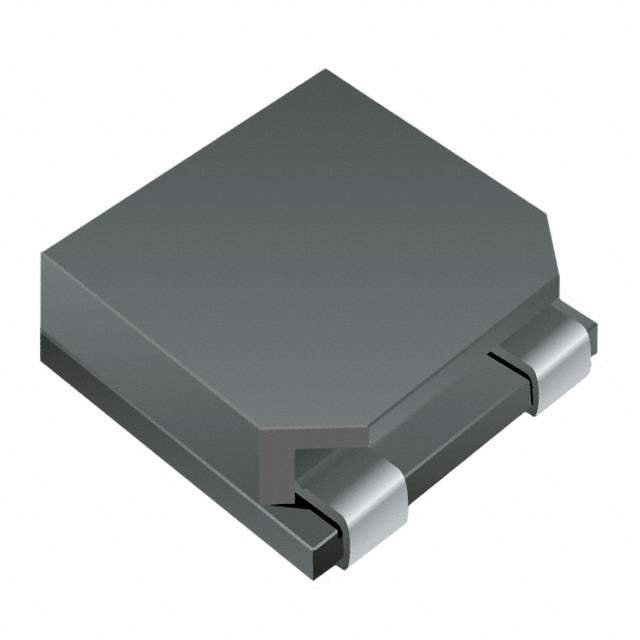

SRR1305-R90ZL Real Image
Same model may have multiple batches, images only for reference.

SRR1305-R90ZL

Part No SRR1305-R90ZL
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SRR1305-R90ZL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRR1305
Package Tape & Reel (TR)
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 900 nH
Tolerance ±25%
Current Rating (Amps) 20 A
Current - Saturation (Isat) 22A
Shielding Shielded
DC Resistance (DCR) 2.5mOhm Max
Frequency - Self Resonant 95MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.492" L x 0.492" W (12.50mm x 12.50mm)
Height - Seated (Max) 0.209" (5.30mm)
Base Product Number SRR1305
Standard Package 600
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 1273368-SRR1305-R90ZL
Ultra Librarian 3D Model Ultra Librarian SRR1305-R90ZL CAD Model

Description

The SRR1305-R90ZL is a fixed inductor that is manufactured by Bourns Inc.

  • Series: SRR1305
  • Package: Tape and reel
  • Shielded: Yes
  • Type: Drum core, wirewound
  • Inductance: 900 nH
  • Tolerance: ±25%
  • Standard Package: 600 inductors
  • DC Resistance (DCR): 2.5mOhm Max
  • Material-Core: Ferrite
  • Frequency Range: 95MHz
  • Package/Case: Nonstandard
  • Mounting: SMD (SMT)
  • ECCN: EAR99
  • REACH: Unaffected
  • Current Rating: 20 A
  • Inductance Frequency: 100 kHz
