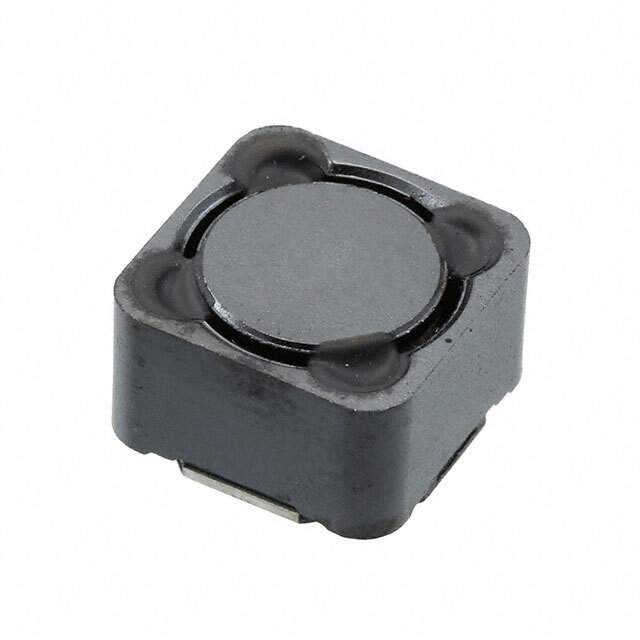

Same model may have multiple batches, images only for reference.

SRR1280A-270M

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	SRR1280A-270M
Manufacturer	Bourns Inc.
Catalog	Fixed Inductors
Datasheet	SRR1280A-270M Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Mfr	Bourns Inc.
Series	SRR1280A
Package	Tape & Reel
Material - Core	Ferrite
Inductance	27 µH
Tolerance	±20%
Current Rating (Amps)	3.9 A
Current - Saturation (Isat)	3.7A
Shielding	Shielded
DC Resistance (DCR)	52mOhm Max
Q @ Freq	26 @ 2.52MHz
Frequency - Self Resonant	10MHz
Ratings	AEC-Q200
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	1 kHz
Mounting	SMD (SMT)
Package / Case	Nonstandard
Supplier Device Package	1280
Dimension	0.492" L x 0.492" W (12.50mm x 12.50mm)
Height - Seated (Max)	0.315" (8.00mm)
Base Product Number	SRR1280A
Other Names	SRR1280A-270MDKR,SRR1280A-270MTR,SRR1280A-270M,SRR1280A-270MCT
Standard Package	400
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.4000
Win Source Part Number	1273381-SRR1280A-270M
Ultra Librarian 3D Model	Ultra Librarian SRR1280A-270M CAD Model

Alternative Products

Description

The SRR1280A series inductor from Bourns Inc. is a shielded fixed inductor with an inductance of 27 µH and a tolerance of ±20%.

DC Resistance: 52 mOhm max
Q @ Freq: 26 @ 2.52MHz
Frequency Self-Resonant: 10MHz
Current Rating: 3.9 A
Mounting Type: SMD (SMT)
Package: Non-standard package
Core Material: Ferrite core material
Height: 0.315 inches (8.00 mm)
