Same model may have multiple batches, images only for reference.

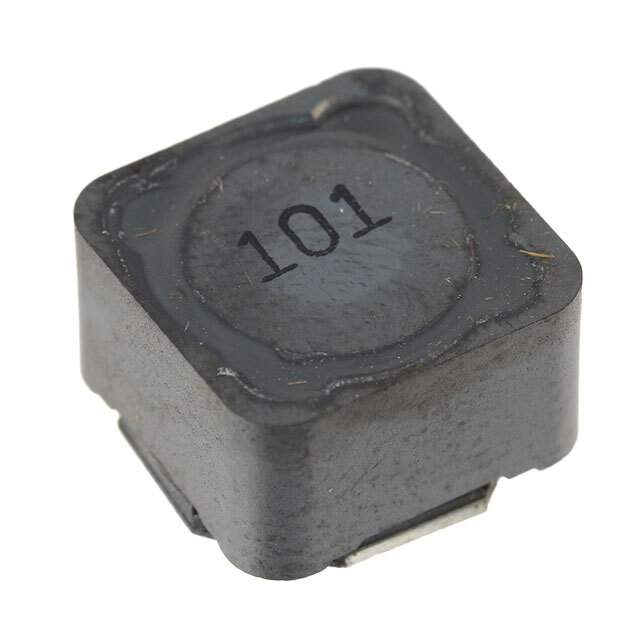

SRR1280-561K Real Image
Same model may have multiple batches, images only for reference.

SRR1280-561K

Part No SRR1280-561K
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SRR1280-561K Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRR1280
Package Tape & Reel (TR)
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 560 µH
Tolerance ±10%
Current Rating (Amps) 800 mA
Current - Saturation (Isat) 1.15A
Shielding Shielded
DC Resistance (DCR) 960mOhm Max
Q @ Freq 20 @ 796kHz
Frequency - Self Resonant 2MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.492" L x 0.492" W (12.50mm x 12.50mm)
Height - Seated (Max) 0.315" (8.00mm)
Base Product Number SRR1280
Other Names SRR1280-561KLCT,SRR1280-561KLCT,-SRR1280-561KLCT,SRR1280561K,SRR1280-561KLTR,-SRR1280-561KL,-SRR1280-561KL,-SRR1280-561KLTR,SRR1280-561KL,SRR1280-561KTR,SRR1280-561KL,SRR1280-561KCT
Standard Package 400
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1273389-SRR1280-561K
Ultra Librarian 3D Model Ultra Librarian SRR1280-561K CAD Model

Description

The SRR1280 series of fixed inductors from Bourns Inc. are designed to be used in a variety of electronic applications.

  • Type: Drum Core, Wirewound
  • Shielding: Shielded
  • Inductance: 560 μH
  • Tolerance: ±10%
  • DC Resistance (DCR): 960 mOhm max
  • Current Rating: 800 mA
  • Core Material: Ferrite
  • Q @ Freq: 20 @ 796kHz
  • Operating Temperature: -40°C to 125°C
  • Frequency - Self-Resonant: 2MHz
  • Package/Case: Nonstandard
  • Height: 0.315" (8.00mm) when seated
  • Packaging: Tape and Reel
  • Standard Package: 400
