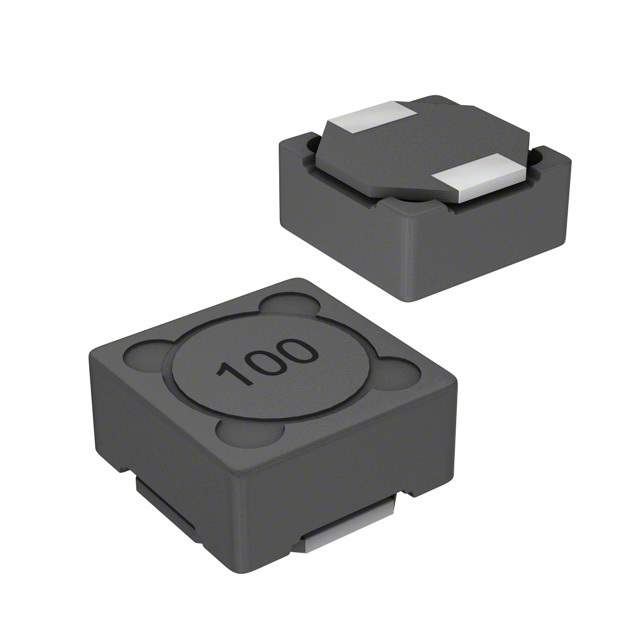

Same model may have multiple batches, images only for reference.

SRR1260-271K

Name: SRR1260-271K
Brand: Bourns Inc.
SKU: 1273440
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	SRR1260-271K
Manufacturer	Bourns Inc.
Catalog	Fixed Inductors
Datasheet	SRR1260-271K Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Mfr	Bourns Inc.
Series	SRR1260
Package	Tape & Reel
Type	Drum Core, Wirewound
Material - Core	Ferrite
Inductance	270 µH
Tolerance	±10%
Current Rating (Amps)	1.3 A
Current - Saturation (Isat)	1.2A
Shielding	Shielded
DC Resistance (DCR)	450mOhm Max
Q @ Freq	20 @ 796kHz
Frequency - Self Resonant	3.6MHz
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	100 kHz
Mounting	SMD (SMT)
Package / Case	Nonstandard
Dimension	0.492" L x 0.492" W (12.50mm x 12.50mm)
Height - Seated (Max)	0.256" (6.50mm)
Base Product Number	SRR1260
Other Names	-SRR1260-271KTR,-SRR1260-271KCT,SRR1260-271K,SRR1260271K,SRR1260-271KCT,SRR1260-271KTR,-SRR1260-271K,-SRR1260-271K,SRR1260-271KDKR
Standard Package	600
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.4000
Win Source Part Number	1273440-SRR1260-271K
Ultra Librarian 3D Model	Ultra Librarian SRR1260-271K CAD Model

Alternative Products

Description

The SRR1260-271K from Bourns Inc. is a shielded fixed inductor with an inductance of 270 µH and a tolerance of ±10%.

Height: 0.256" (6.50mm)
Standard Package: 600
Package: Nonstandard tape & reel
Core Material: Ferrite
Q: 20 @ 796kHz
Frequency Self-Resonant: 3.6MHz
DC Resistance (DCR): 450mOhm Max
Temperature Range: -40°C to 125°C
Dimension: 0.492" L x 0.492" W (12.50mm x 12.50mm)
