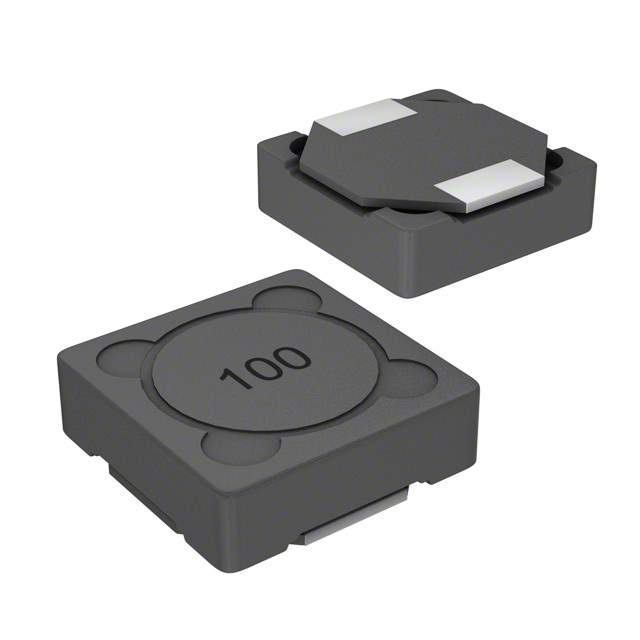

SRR1240-1R5Y Real Image
Same model may have multiple batches, images only for reference.

SRR1240-1R5Y

Part No SRR1240-1R5Y
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SRR1240-1R5Y Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRR1240
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 1.5 µH
Tolerance ±30%
Current Rating (Amps) 9.2 A
Current - Saturation (Isat) 9A
Shielding Shielded
DC Resistance (DCR) 9.5mOhm Max
Q @ Freq 16 @ 7.96MHz
Frequency - Self Resonant 80MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.492" L x 0.492" W (12.50mm x 12.50mm)
Height - Seated (Max) 0.177" (4.50mm)
Base Product Number SRR1240
Other Names 118-SRR1240-1R5YTR,SRR1240-1R5Y,118-SRR1240-1R5YCT,118-SRR1240-1R5YDKR
Standard Package 800
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1273467-SRR1240-1R5Y
Ultra Librarian 3D Model Ultra Librarian SRR1240-1R5Y CAD Model

Description

The SRR1240 series is a drum core, wirewound type of inductor that comes in a shielded package for better performance.

  • Model: SRR1240-1R5Y
  • Inductance: 1.5 µH
  • Tolerance: ±30%
  • DC Resistance: 9.5mOhm max
  • Current Rating: 9.2 A
  • Q @ Freq: 16 @ 7.96MHz
  • Frequency Self-Resonant: 80MHz
  • Package/Case: Nonstandard
  • Height: 0.177" (4.50mm)
  • Dimension: 0.492" L x 0.492" W (12.50mm x 12.50mm)
  • Temperature Range: -40°C ~ 125°C
  • Material: Ferrite
  • ECCN: EAR99
