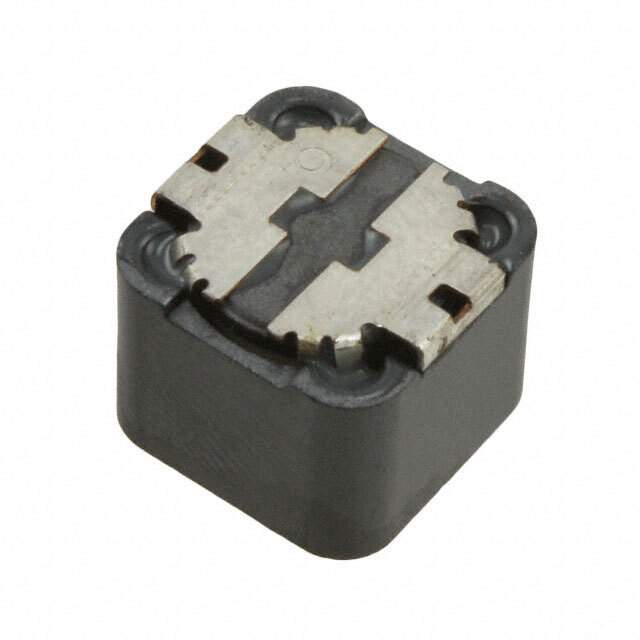

SRR1210-821M Real Image
Same model may have multiple batches, images only for reference.

SRR1210-821M

Part No SRR1210-821M
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SRR1210-821M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRR1210
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 820 µH
Tolerance ±20%
Current Rating (Amps) 850 mA
Current - Saturation (Isat) 750mA
Shielding Shielded
DC Resistance (DCR) 1.32Ohm Max
Q @ Freq 6 @ 796kHz
Frequency - Self Resonant 850kHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.472" L x 0.472" W (12.00mm x 12.00mm)
Height - Seated (Max) 0.394" (10.00mm)
Base Product Number SRR1210
Other Names SRR1210-821MDKR,SRR1210-821MCT,SRR1210-821MTR,SRR1210-821M,SRR1210821M
Standard Package 250
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 1273493-SRR1210-821M
Ultra Librarian 3D Model Ultra Librarian SRR1210-821M CAD Model

Description

The SRR1210 series inductor is a great choice for your electronic projects.

  • Inductance: 820μH
  • Tolerance: ±20%
  • Package: tape & reel
  • Shielding: yes
  • Mounting: SMD (SMT)
  • Q @ Freq: 6 @ 796kHz
  • Frequency - Self-Resonant: 850kHz
  • Package/Case: nonstandard
  • DC Resistance (DCR): 1.32Ohm Max
  • Supplier Device Package: -
  • Temperature Range: -40°C ~ 125°C
  • Dimension: 0.472" L x 0.472" W (12.00mm x 12.00mm)
  • ECCN: EAR99
  • REACH Status: REACH Unaffected
  • HTSUS: 8504.50.8000
  • Manufacturer: Bourns Inc.
